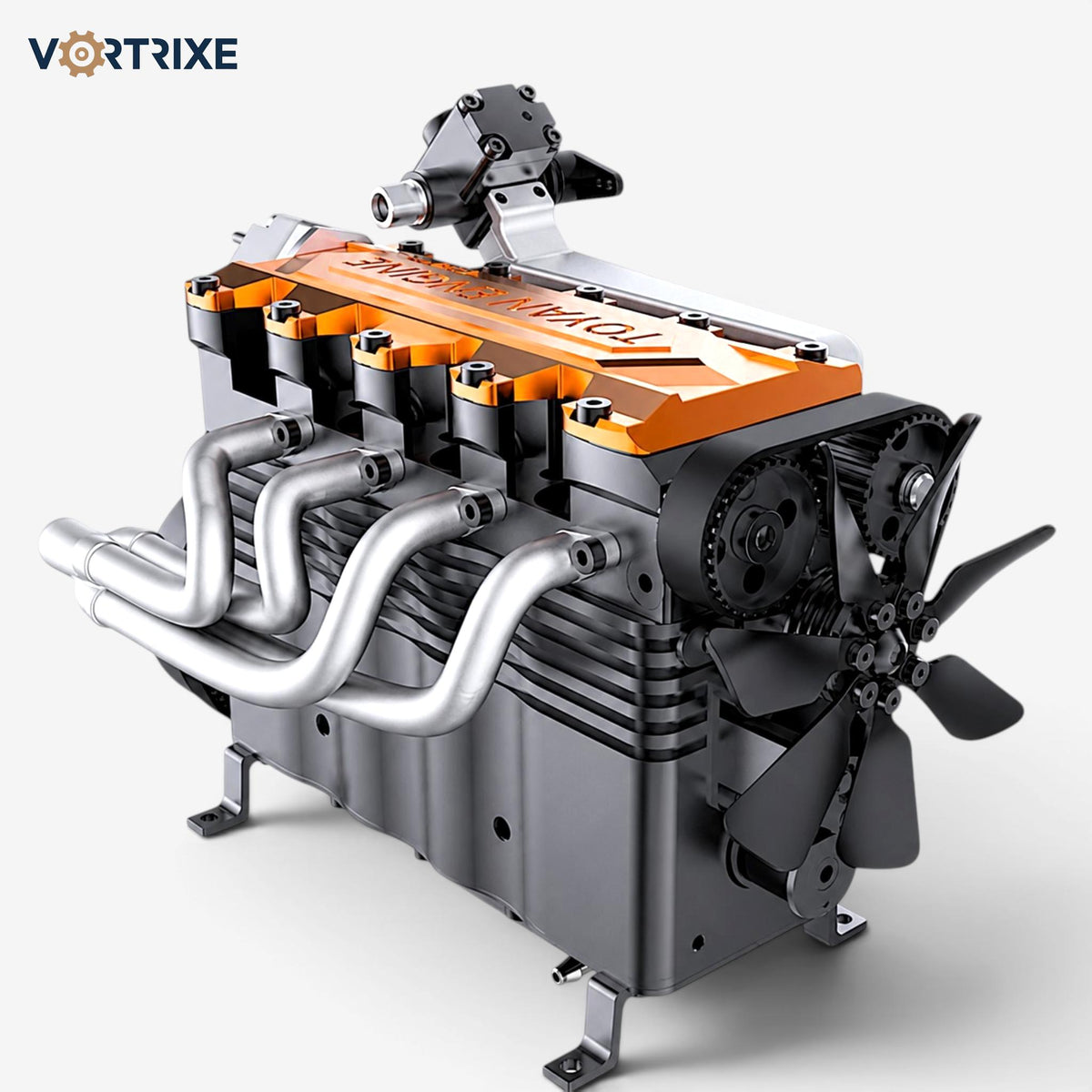

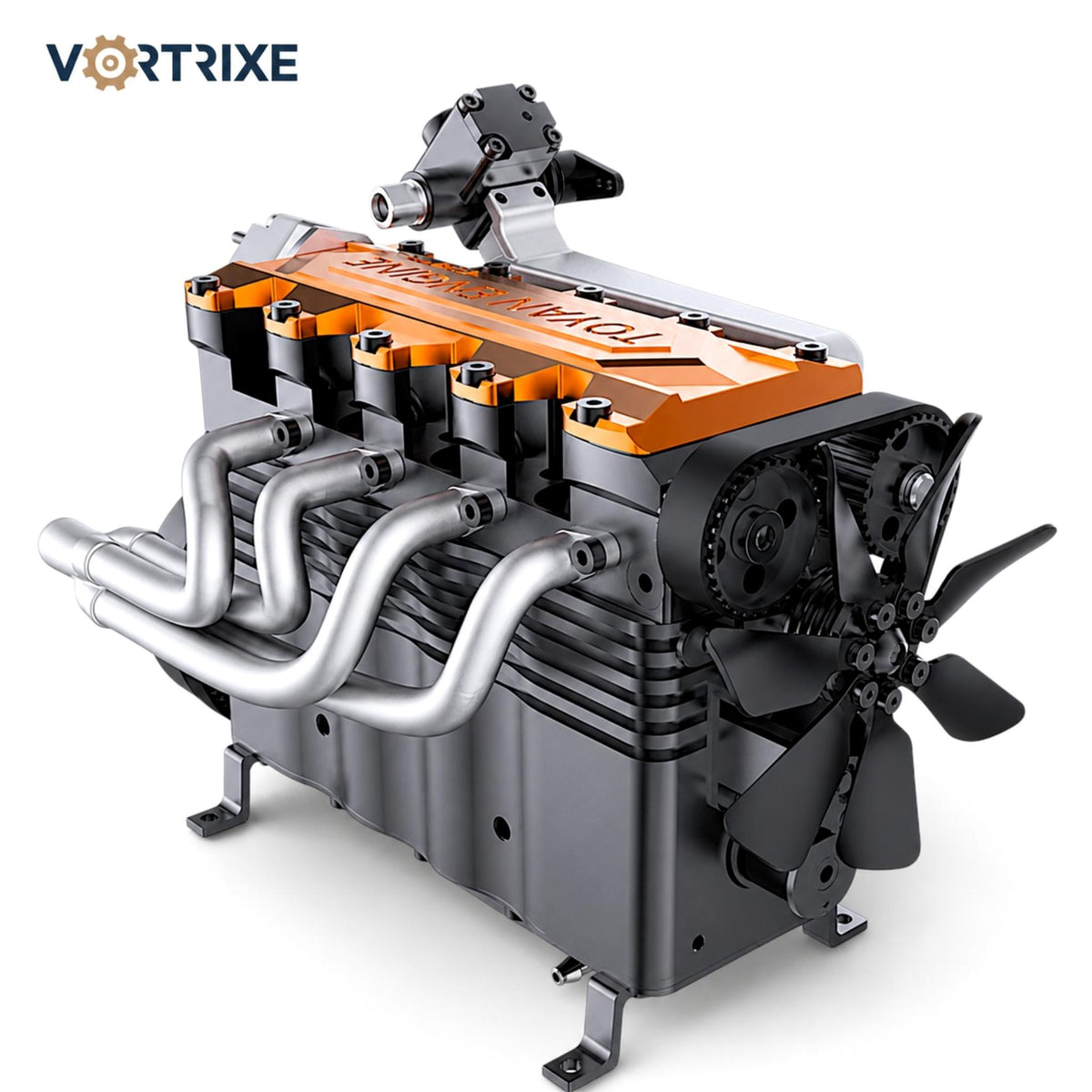

VORTRIXE & TOYAN FS-L400BGC 14CC Inline 4 Cylinder 4 Stroke OHC L4 Water-cooled Gasoline Engine Model Kit
- Regular Price
- $769.99
- Sale Price
- $769.99
- Regular Price
- $854.99
Sold Out
- Unit Price
- per
Model Showcase Reviews

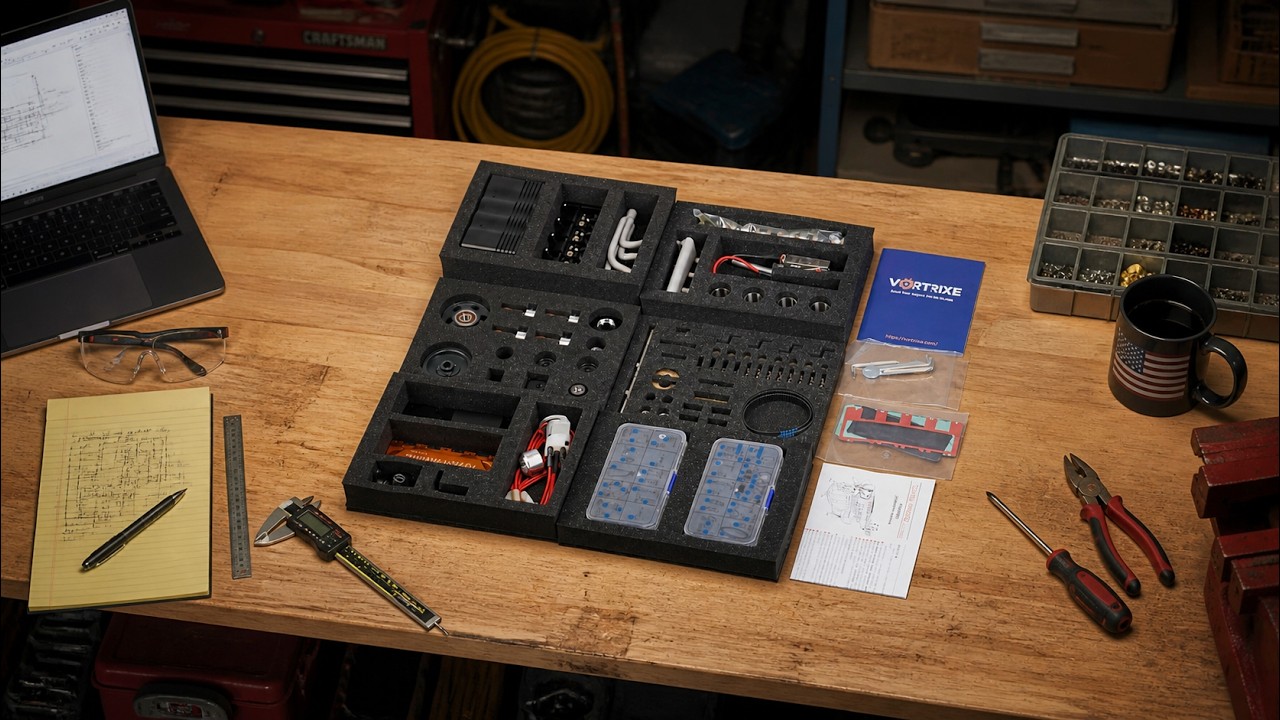

Unboxing the FS-L400BGC Inline 4 Cylinder 4 Stroke OHC Engine Kit
Vortrixe
×

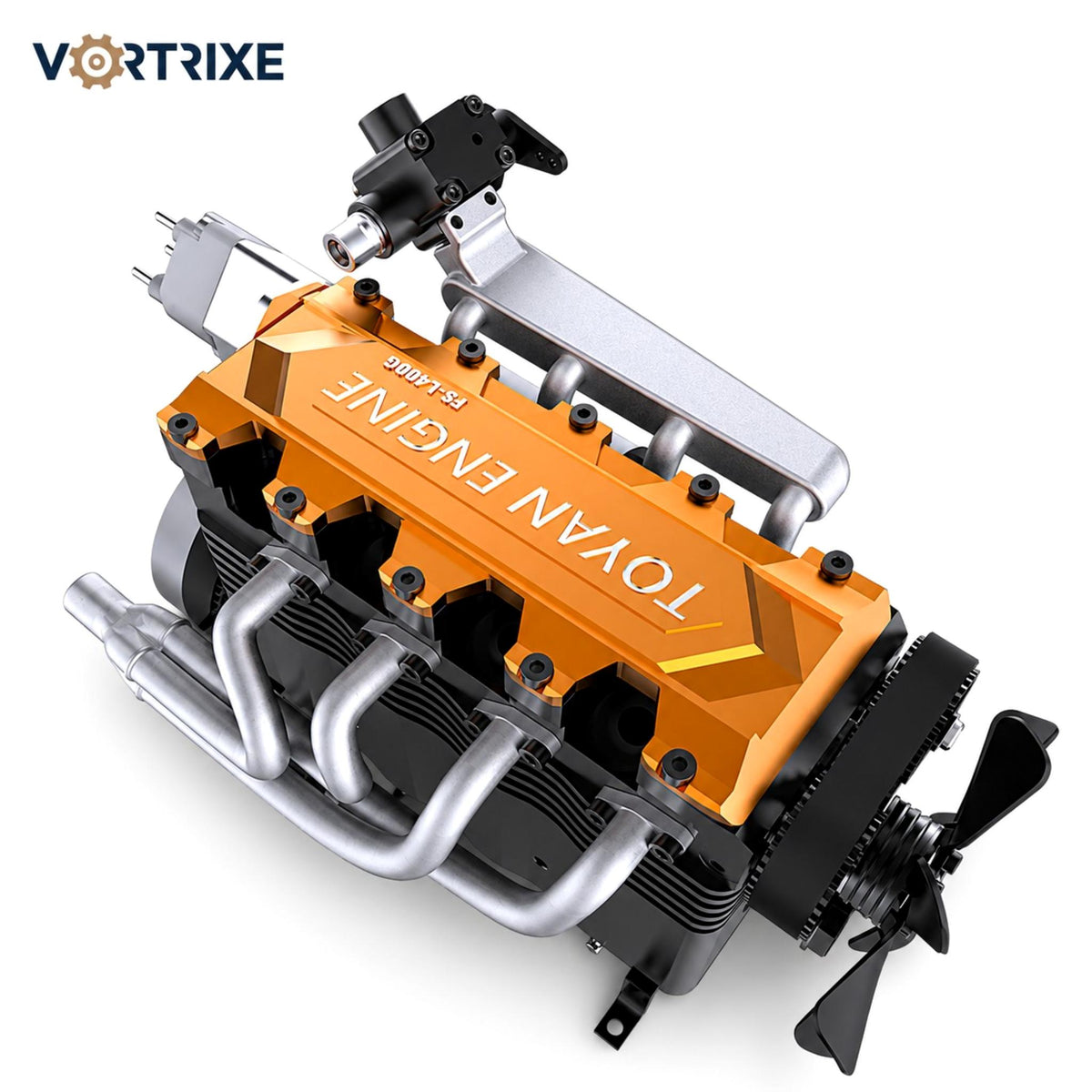

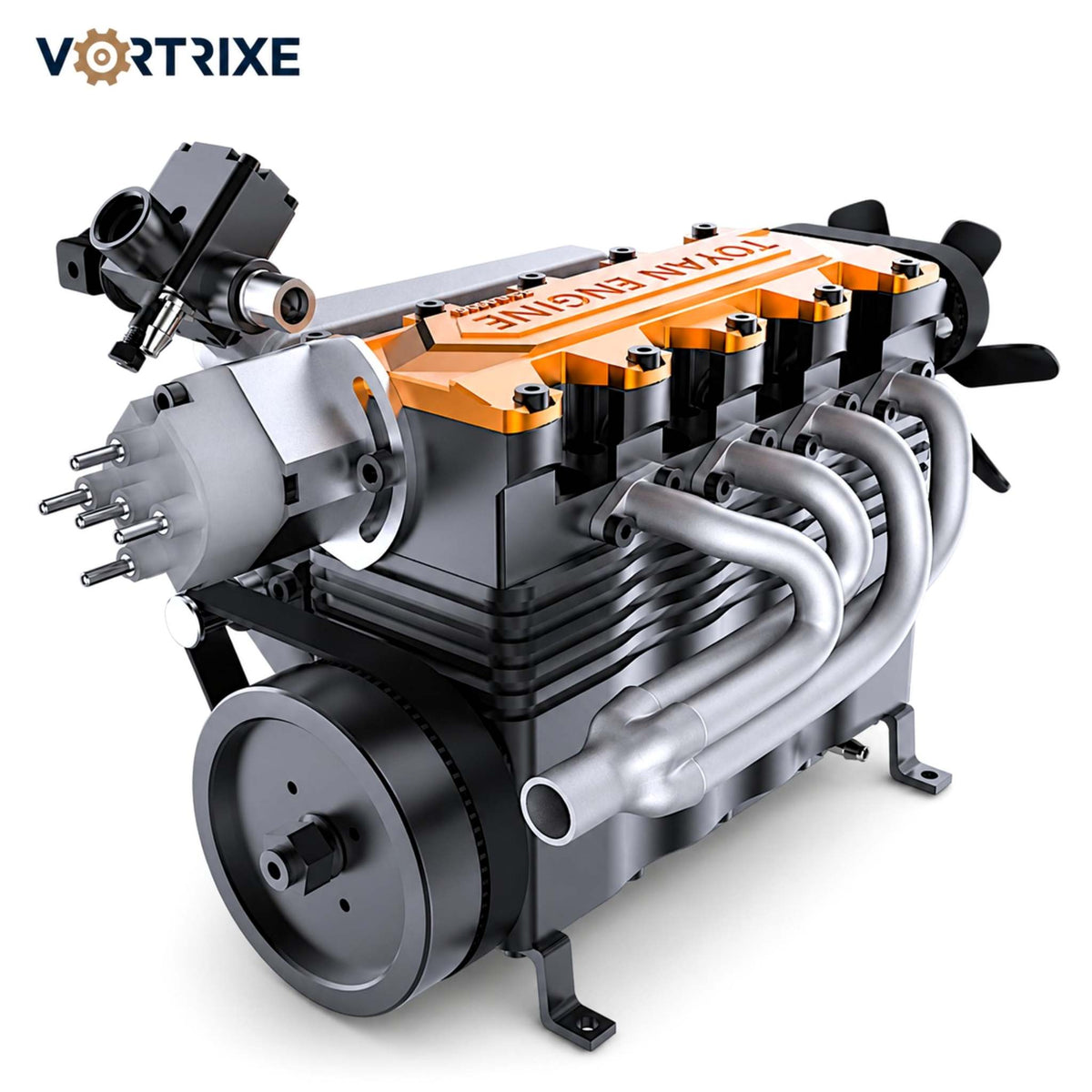

VORTRIXE & TOYAN FS-L400BGC 14CC Inline 4 Cylinder 4 Stroke OHC L4 Water-cooled Gasoline Engine Model Kit
Valve / Camshaft Upgrade:
Upgraded valve manufacturing process extends lifespan by 3.5 times compared with TOYAN L400. High-angle camshaft design delivers more sensitive and responsive throttle control.
Carburetor / Intake Upgrade:
Redesigned carburetor with a matched fuel needle for easier engine startup. Newly designed intake manifold improves usability and tuning convenience.
Oil Sump Upgrade:
Enlarged oil sump capacity to support independent lubrication systems in future upgrades.
Integrated Crankshaft:
Features a 90-degree phased crankshaft structure for smoother, more responsive operation, with a maximum speed of up to 13,500 RPM.
Crankshaft Support Bracket:
A newly added crankshaft support frame enhances strength during high-speed operation and improves overall running stability.
Dual Synchronous Pulleys:
Dual synchronous pulley timing structure significantly reduces the risk of tooth skipping at high engine speeds.
Long Stroke Design:
Dual oil seal crankshaft design prevents oil leakage and axial movement, maintaining stability during high-speed operation.
Highly Simulated – More Realistic:
Sport-inspired gold finish delivers a highly realistic engine appearance and supports operation with real gasoline.
Fun DIY Experience:
High-precision parts with step-by-step instructions make assembly easy to follow, offering an in-depth understanding of engine structure and mechanical principles.
Age Recommendation: 16+
Valve / Camshaft Upgrade:
Upgraded valve manufacturing process extends lifespan by 3.5 times compared with TOYAN L400. High-angle camshaft design delivers more sensitive and responsive throttle control.
Carburetor / Intake Upgrade:
Redesigned carburetor with a matched fuel needle for easier engine startup. Newly designed intake manifold improves usability and tuning convenience.
Oil Sump Upgrade:
Enlarged oil sump capacity to support independent lubrication systems in future upgrades.
Integrated Crankshaft:
Features a 90-degree phased crankshaft structure for smoother, more responsive operation, with a maximum speed of up to 13,500 RPM.
Crankshaft Support Bracket:
A newly added crankshaft support frame enhances strength during high-speed operation and improves overall running stability.
Dual Synchronous Pulleys:
Dual synchronous pulley timing structure significantly reduces the risk of tooth skipping at high engine speeds.
Long Stroke Design:
Dual oil seal crankshaft design prevents oil leakage and axial movement, maintaining stability during high-speed operation.
Highly Simulated – More Realistic:
Sport-inspired gold finish delivers a highly realistic engine appearance and supports operation with real gasoline.
Fun DIY Experience:
High-precision parts with step-by-step instructions make assembly easy to follow, offering an in-depth understanding of engine structure and mechanical principles.
Age Recommendation: 16+
| Material | Metal |
| Brand | TOYAN |
| Model | FS-L400BGC |
| Form | Kit Version |
| Engine Type | Gasoline Internal Combustion Engine |
| Valve Mechanism | OHC (Overhead Camshaft) |
| Displacement | 14cc (4 × 3.5cc) |
| Cylinders | Inline Four-Cylinder |
| Cycle | Four-Stroke |
| Bore | 16.6mm |
| Stroke | 17.0mm |
| Max RPM | 3200–13,500 rpm |
| Power Output | 3.05 hp |
| Cooling System | Water-Cooled + Air-Cooled |
| Lubrication Method | Splash Lubrication (Upgradable to Independent Lubrication) |
| Starting Method | Electric Start |
| Ignition Method | CDI Ignition |
| Spark Plug Type | 1/4-32 Thread ME8 Type Spark Plug |
| Start Power Source | 6–12V, Recommended 2S–3S Lipo Battery |
| Fuel Type | 92# and Above Gasoline |
| Lubricating Oil Type | Common Lubricating Grease (Regularly applied to the camshaft) |
| Product Dimensions | 16.35 × 5.05 × 10cm |
| Package Dimensions | 21.5 × 21.5 × 17cm |
| Product Weight | 1250g |
| Package Weight | 1950g |
| Packing | Box |

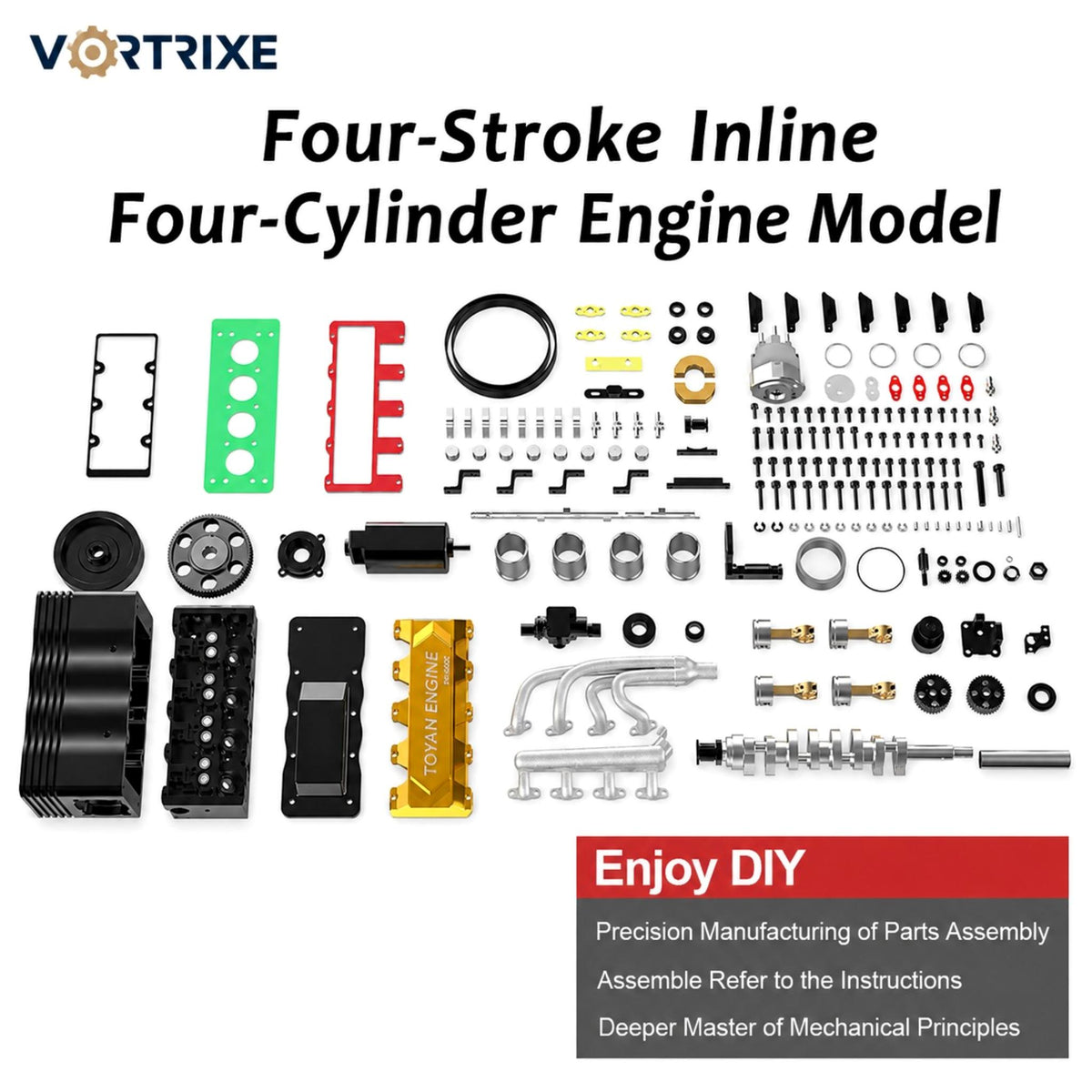

| Package Content | TOYAN FS-L400BGC Engine Model Kit ×1; Tool Set for TOYAN Engine ×1; Instructions ×1 |
Orders are usually processed and shipped within 1–3 business days. Delivery time may vary depending on your location. Please refer to our Shipping Policy page for more information.
We offer a 30-day return window for items that are unused and in original condition. If you’re not satisfied with your order, please contact our support team to begin the return process. Conditions and exclusions may apply, as explained on our Refund Policy page.
Yes, we offer international shipping worldwide. Please refer to the Shipping Policy page for more information.
Once your order ships, a tracking number will be sent to your email. You can use it to check your package status. If you need help, feel free to contact our support team.
We accept major credit cards (Visa, Mastercard, American Express) and PayPal. At this time, we do not support cash on delivery or personal checks.

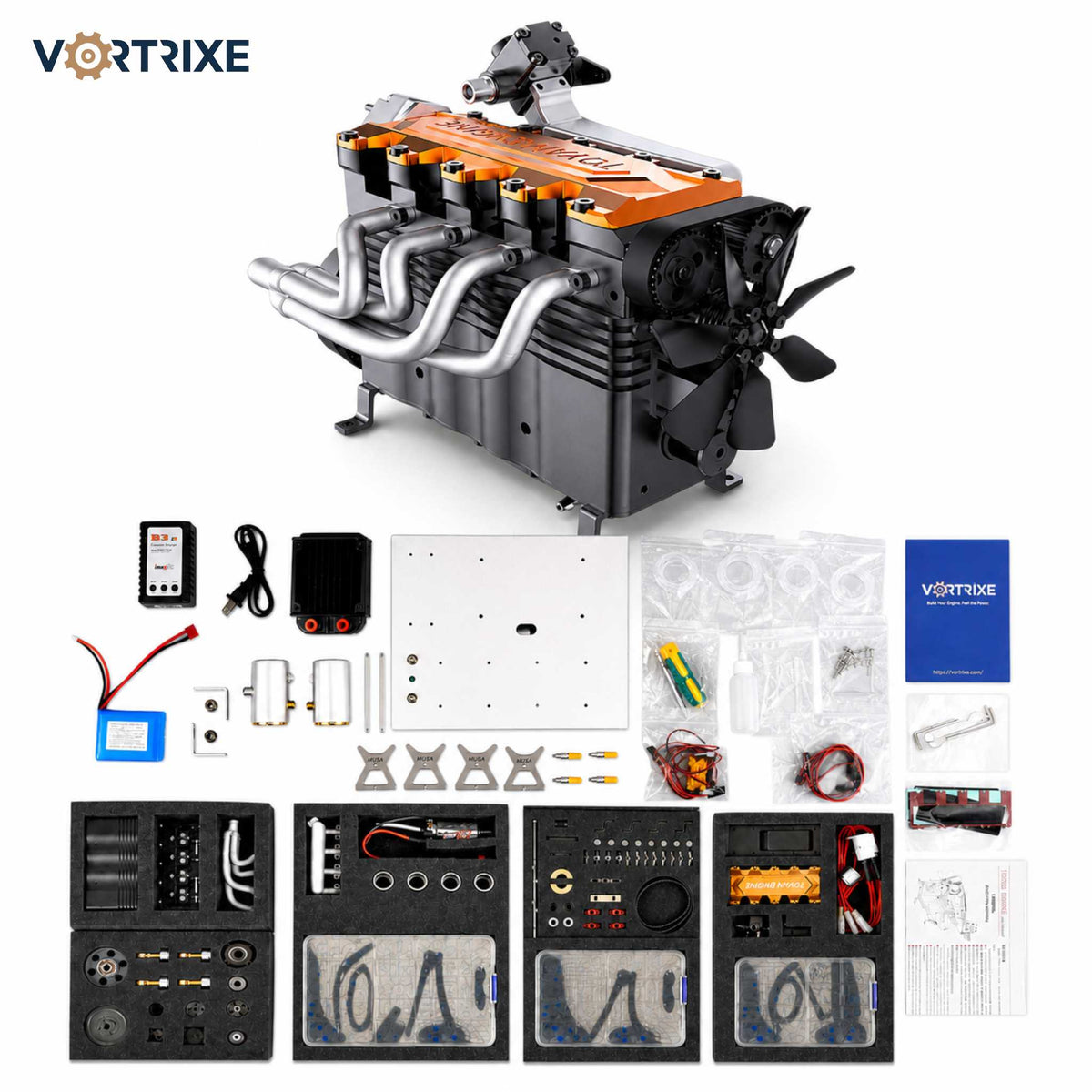

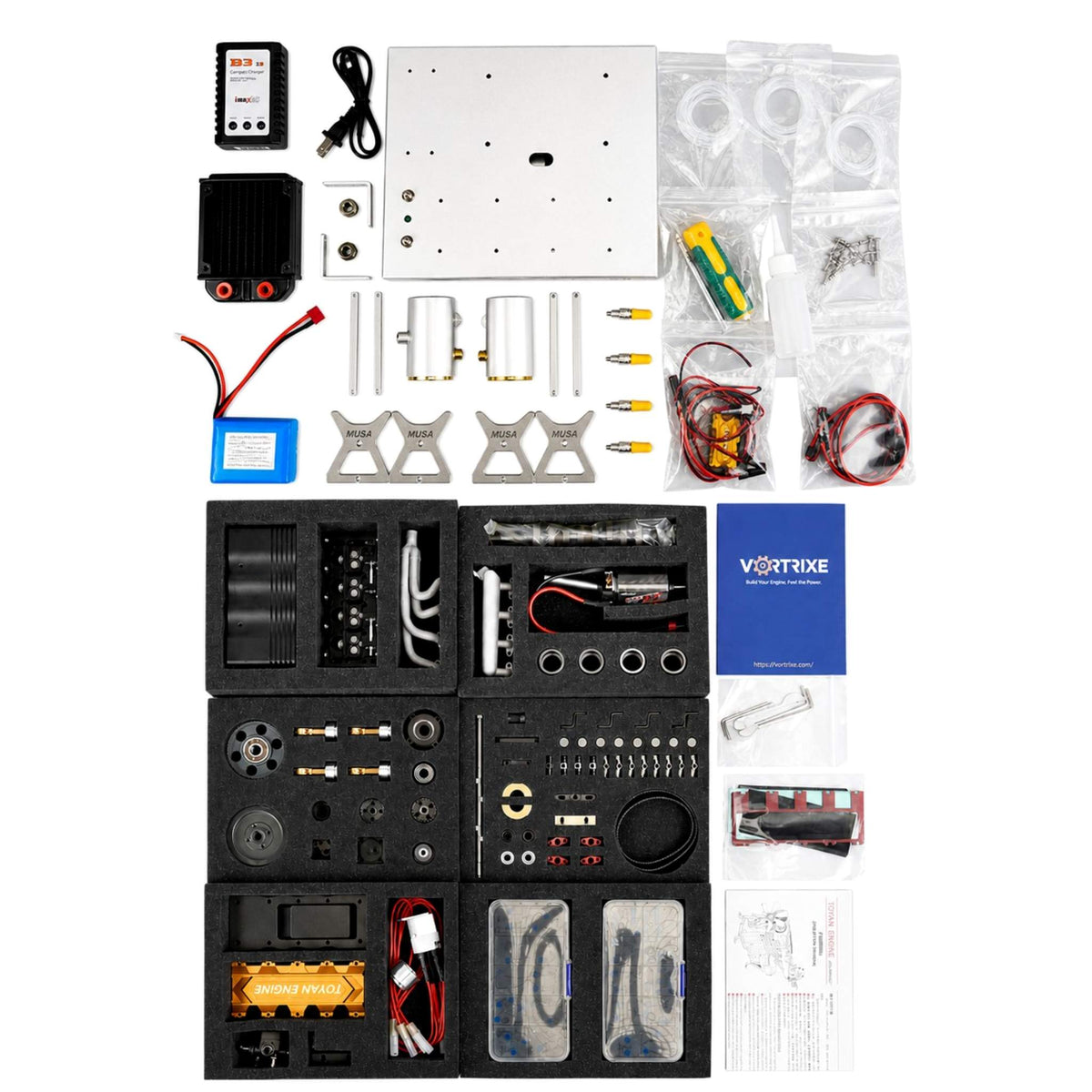

What's in the Box

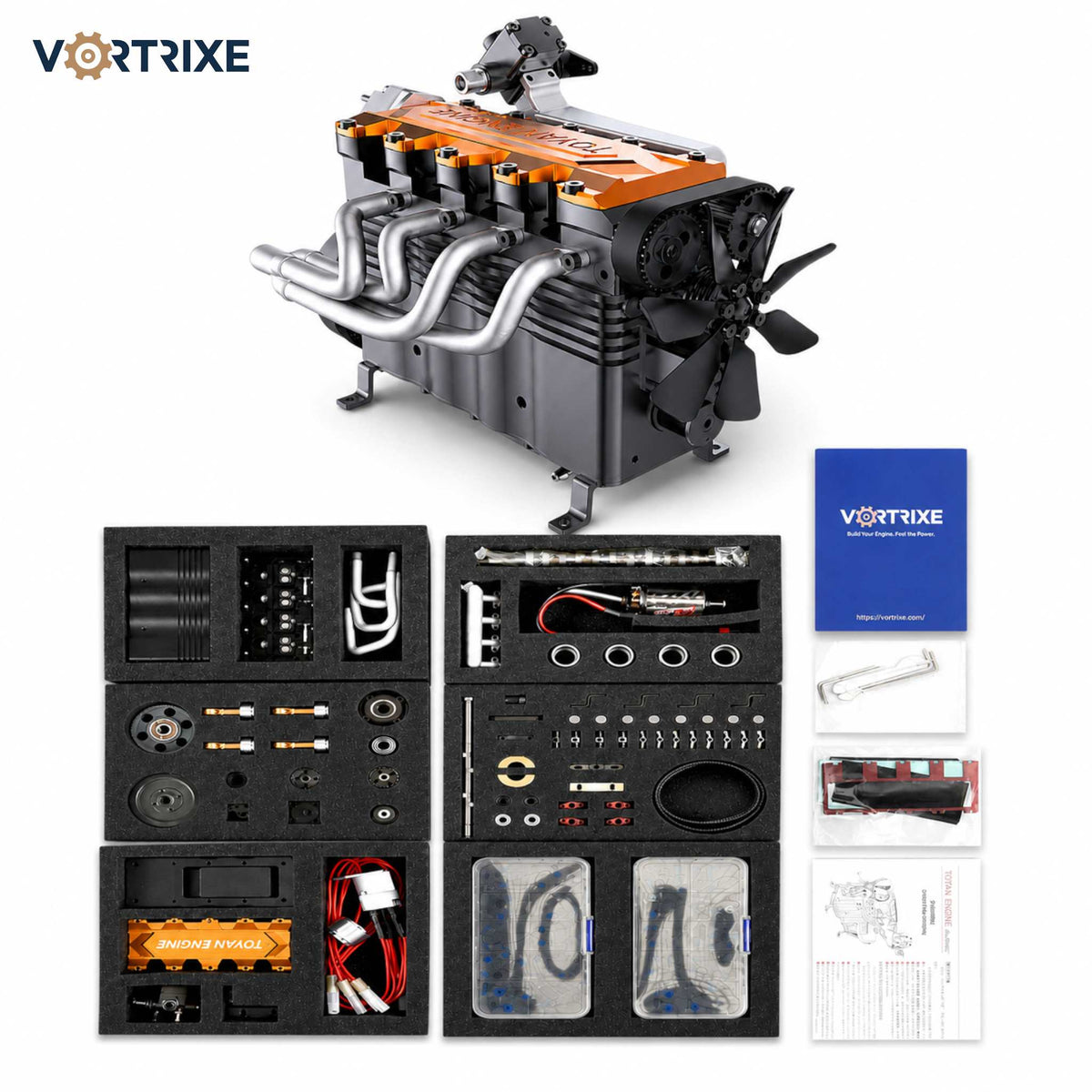

Gasoline FS-L400BGC Package

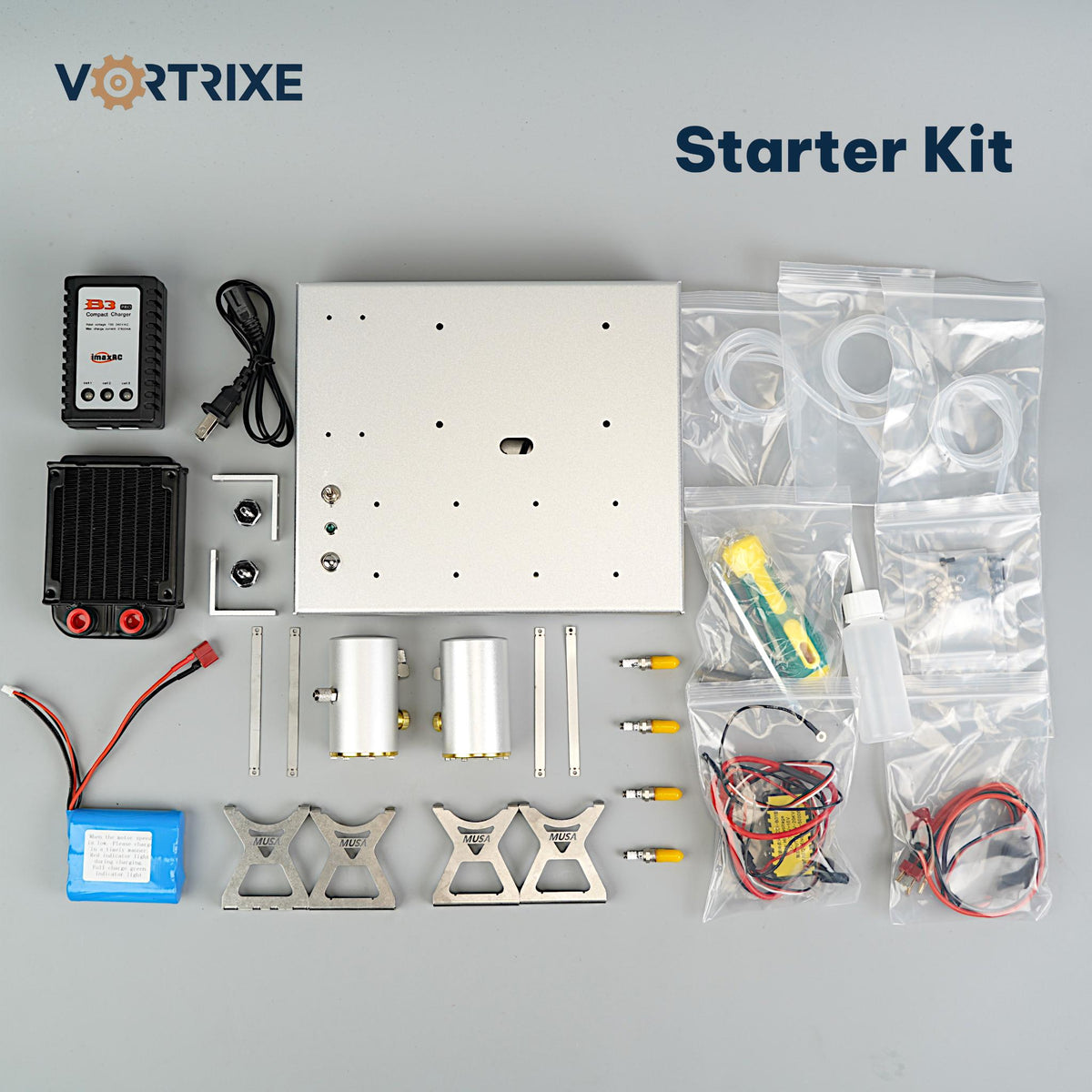

FS-L400BGC Fitting Starter Kit
