VORTRIXE 850mL Double-combustion Tube Horizontal Steam Engine Boiler Model

Brand: VORTRIXE
Product name: VORTRIXE™ 850mL Double-combustion Tube Horizontal Steam Engine Boiler Model

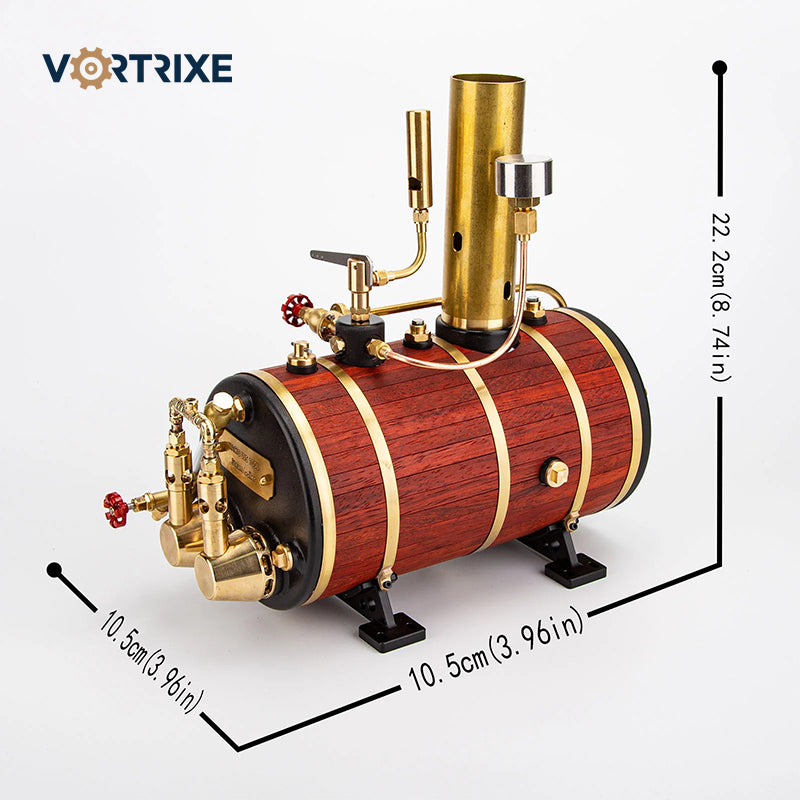

Size: 22.2 × 10.5 × 10.5 cm / 8.74 × 4.13 × 4.13 inches
Product Weight: 2800g
Material: Brass/Mahogany

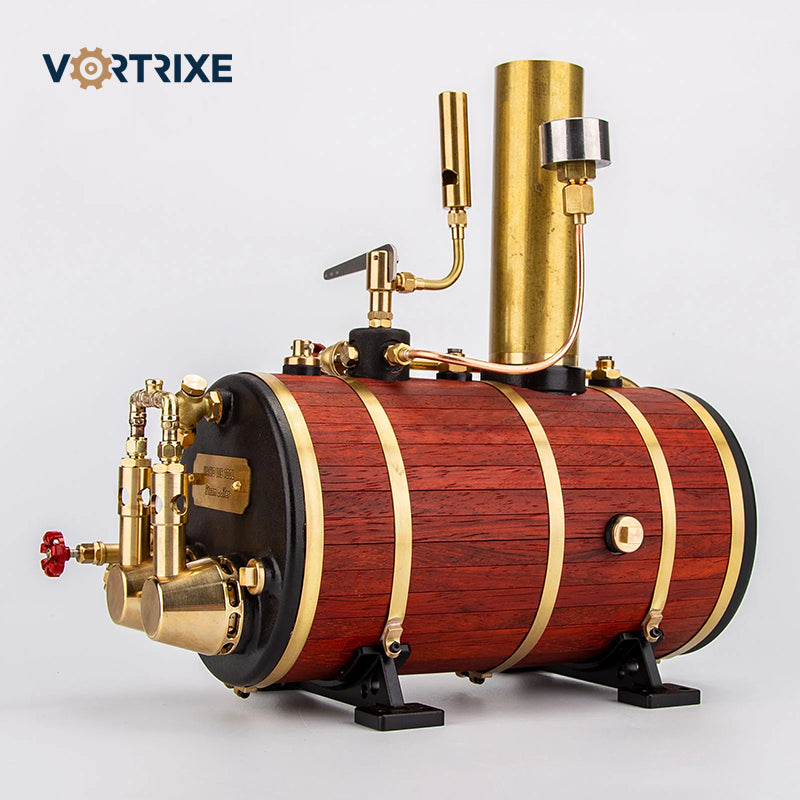

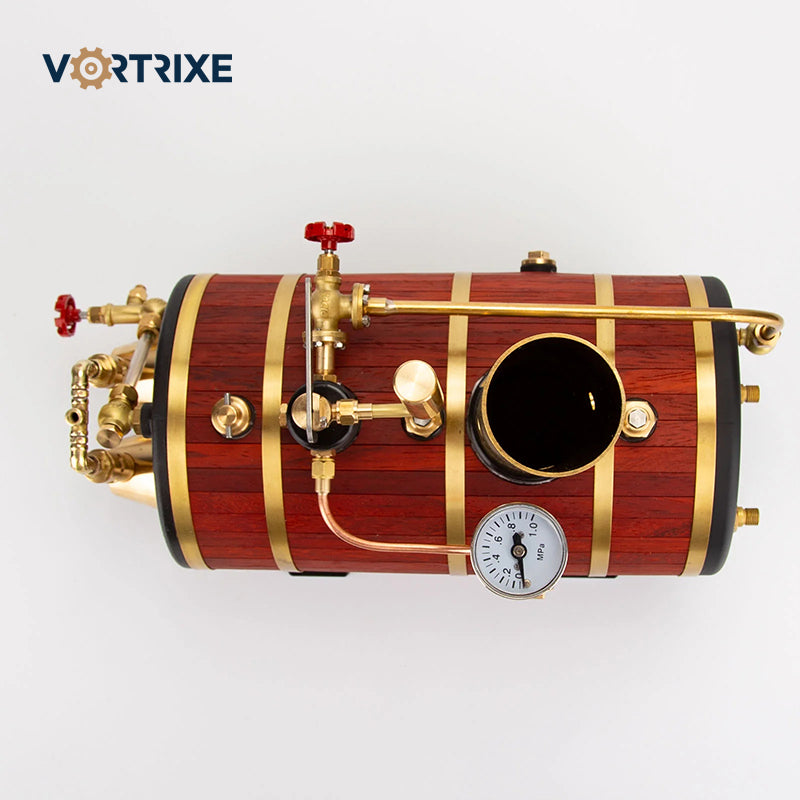

This high-quality steam boiler offers both exceptional craftsmanship and outstanding performance. Made from pure copper and finished with a mahogany insulation layer, it boasts excellent thermal insulation. It comes fully equipped with a pressure gauge, air whistle, main valve, water level gauge, double steam outlets, and double safety valves, along with a reserved smoke inlet and 1/4-40mm pipe joints. Additional interfaces on each side allow for easy attachment of future accessories. Thanks to its dual combustion heating tubes and ultra-efficient heat conversion, the boiler can generate up to 0.4MPa of air pressure in just 8 minutes, while the pressure relief valve is set at 0.5MPa for added safety.

Ideal for collectors and hobbyists alike, this steam boiler is not just a functional powerhouse but also a vintage work of art. It is perfectly suited for 1.0 to 1.5-meter model steam boats and has the capacity to effortlessly power even a three-cylinder steam engine. For optimal use, water should be filled to 3/5 of the total capacity, with pressure maintained below 0.5MPa. Avoid dry burning and always drain the remaining water after use. Designed with a premium fire control system, it ensures safety and fuel efficiency—best used with butane gas for maximum performance.
