We are planning to pre-order only 100 units, and customers who place an order during the pre-order period can enjoy $100 off.
All 1110 pre-order units will be shipped in December. We will ensure that each engine is carefully produced and tested to guarantee top-quality performance.
Thank you for your understanding and support!

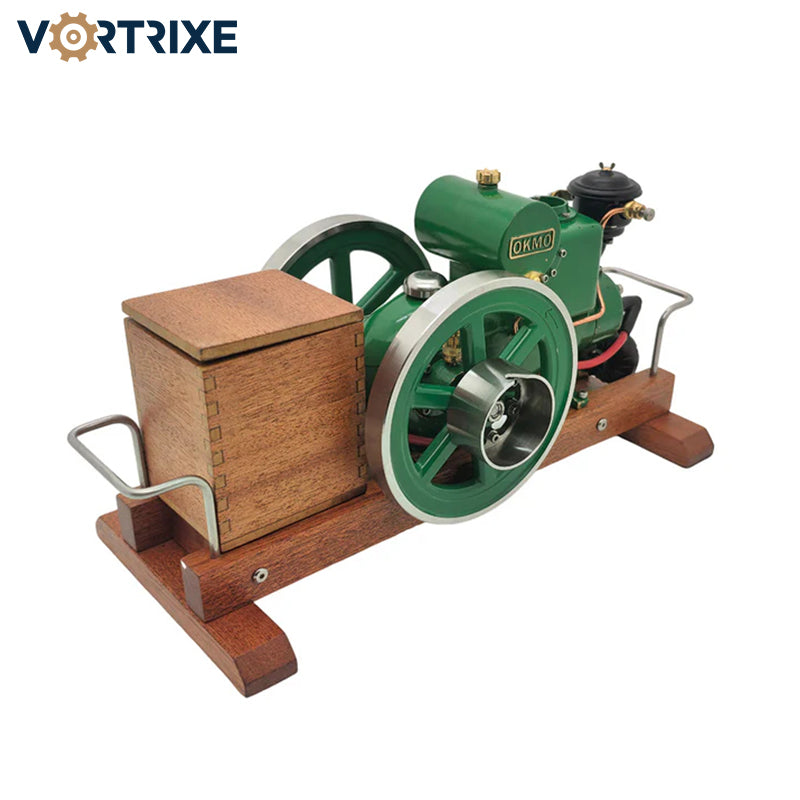

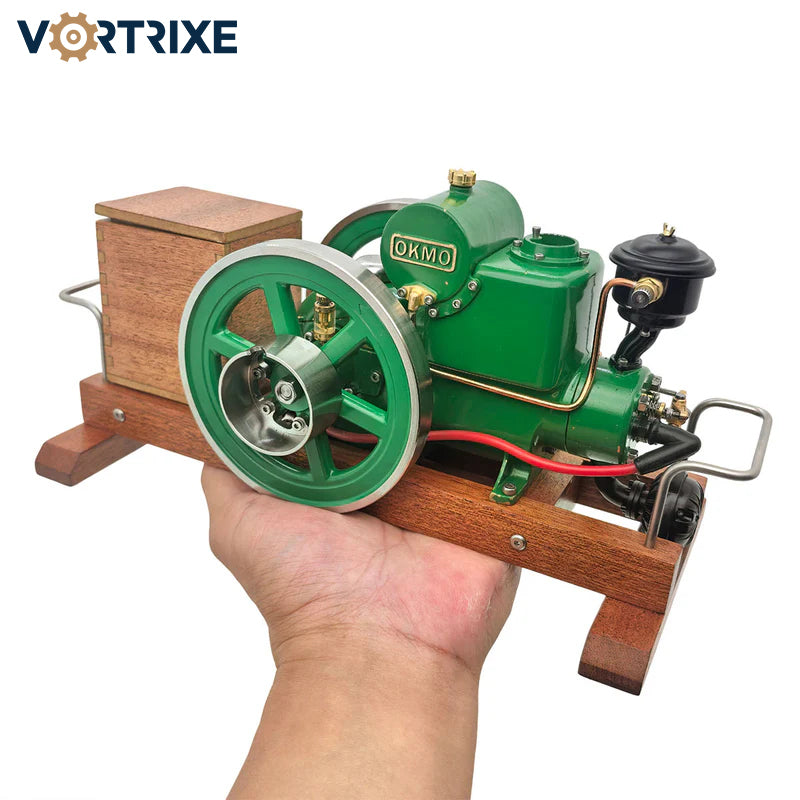

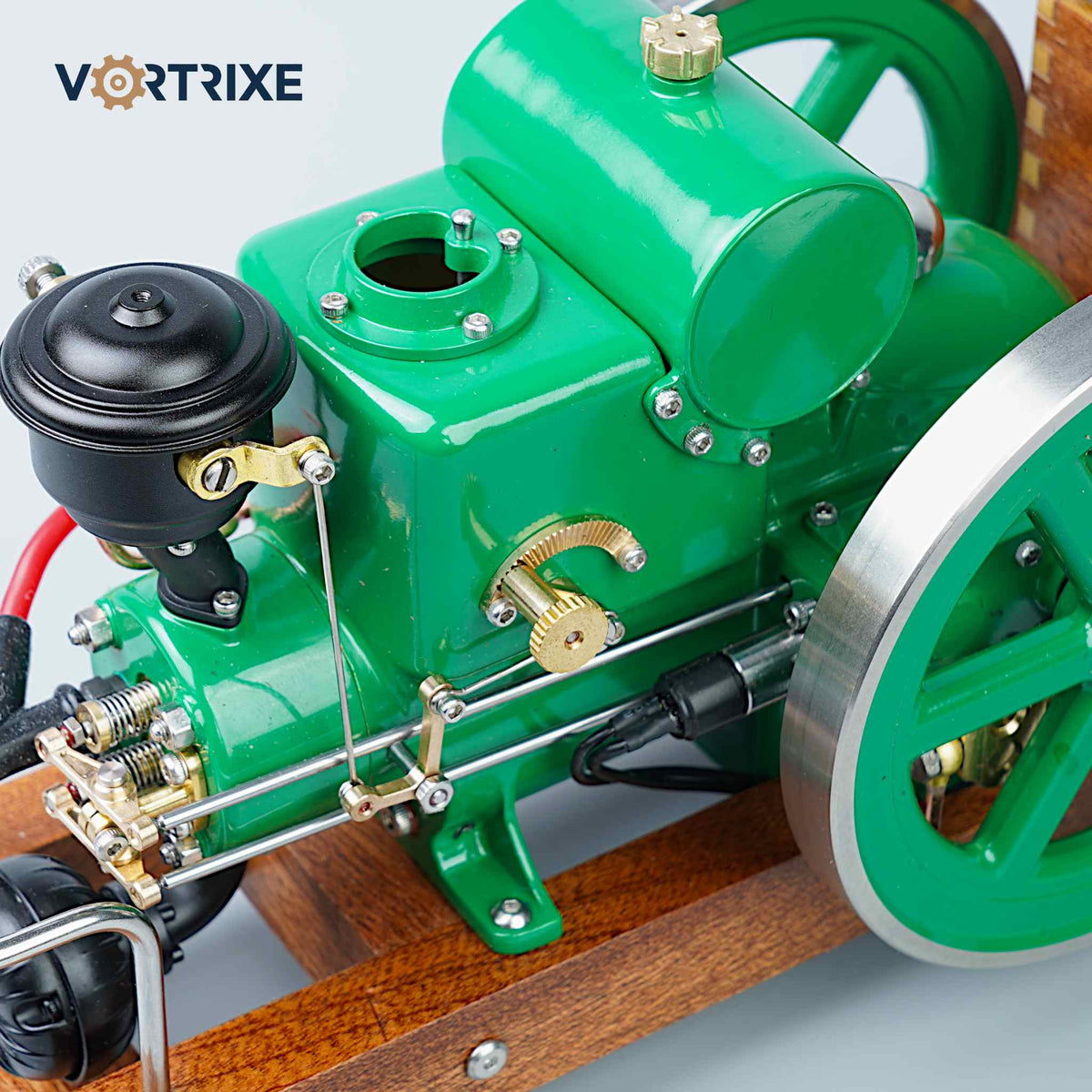

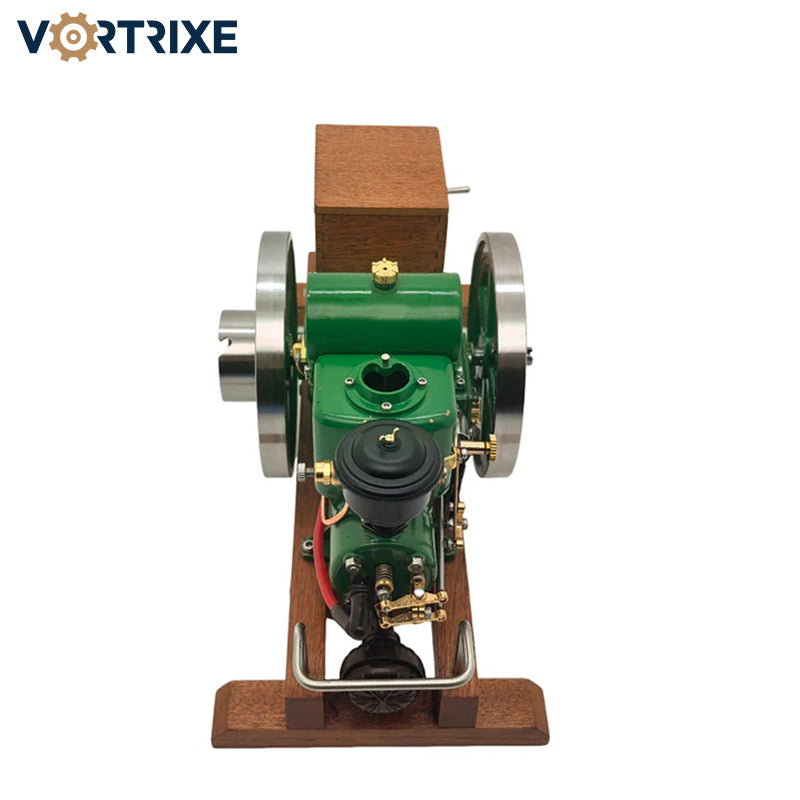

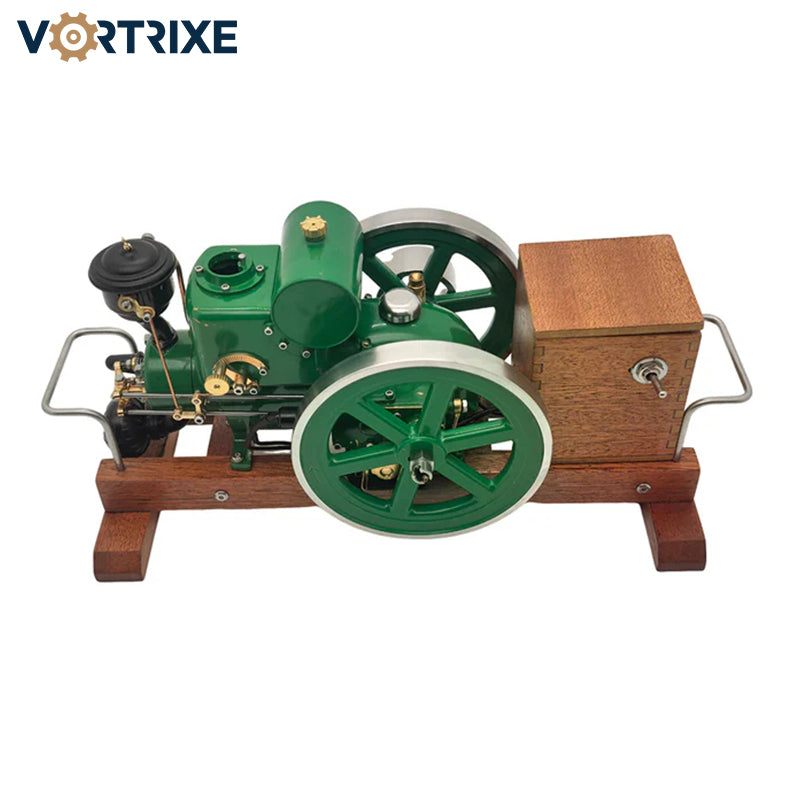

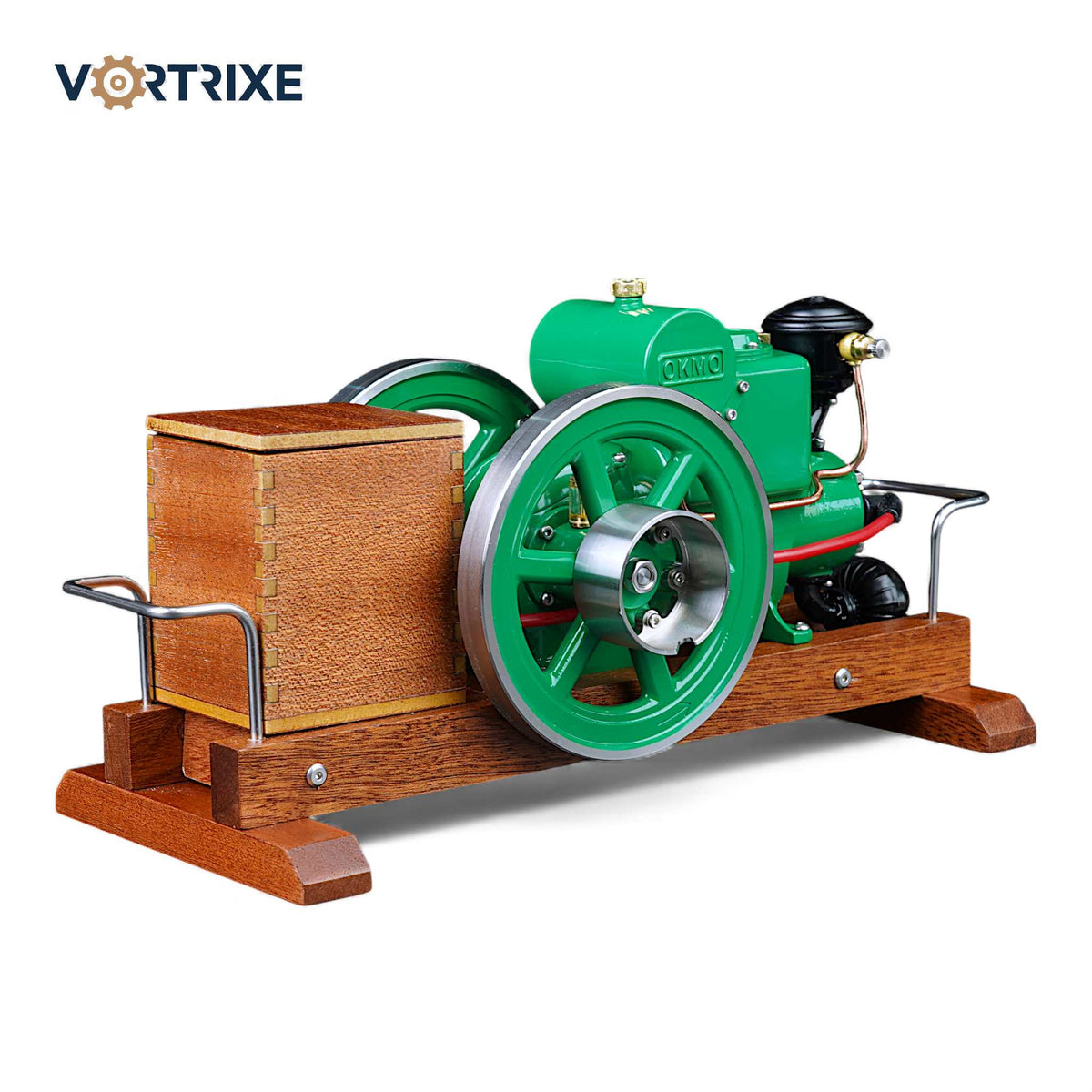

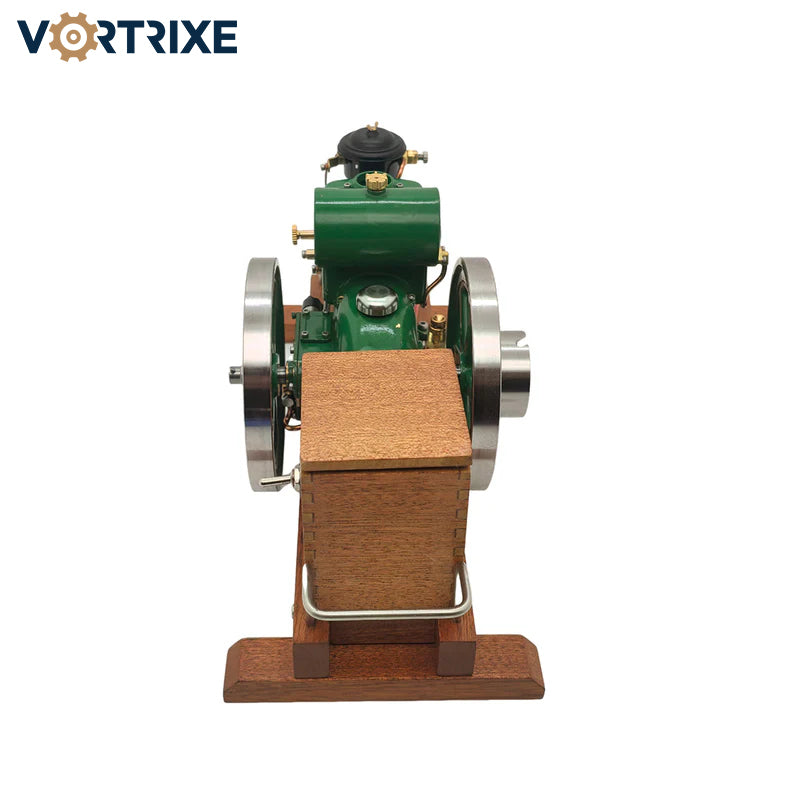

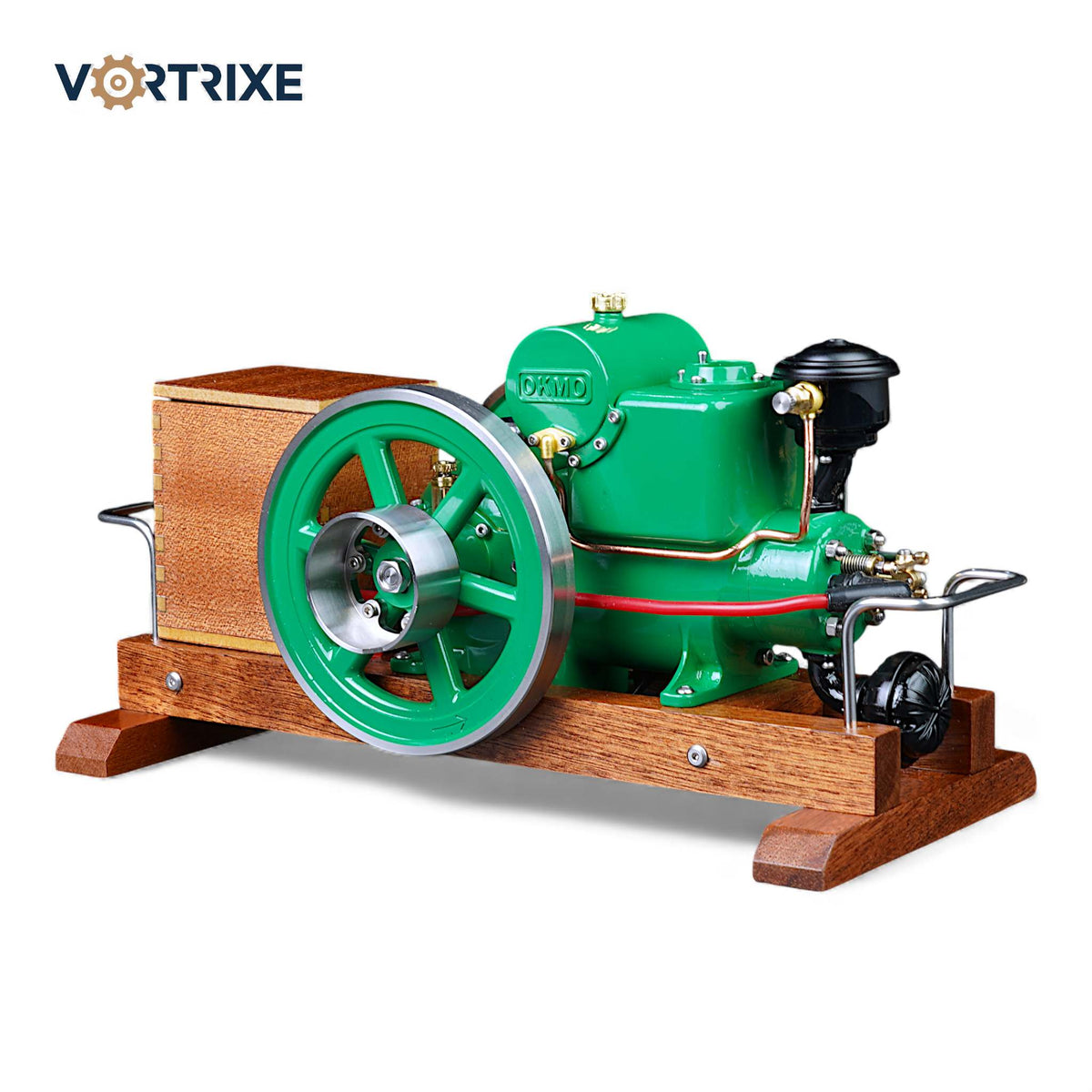

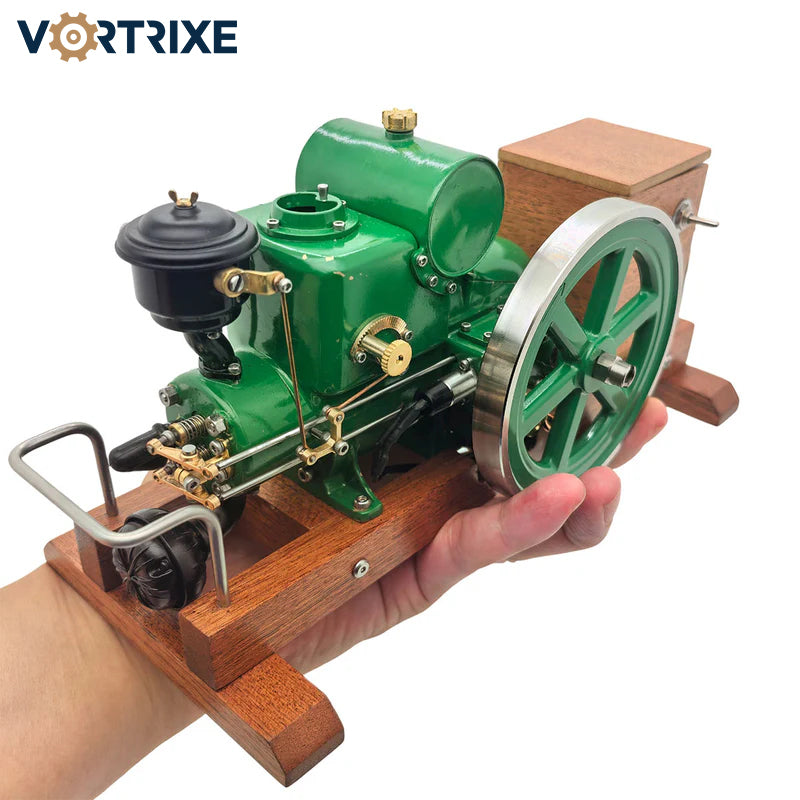

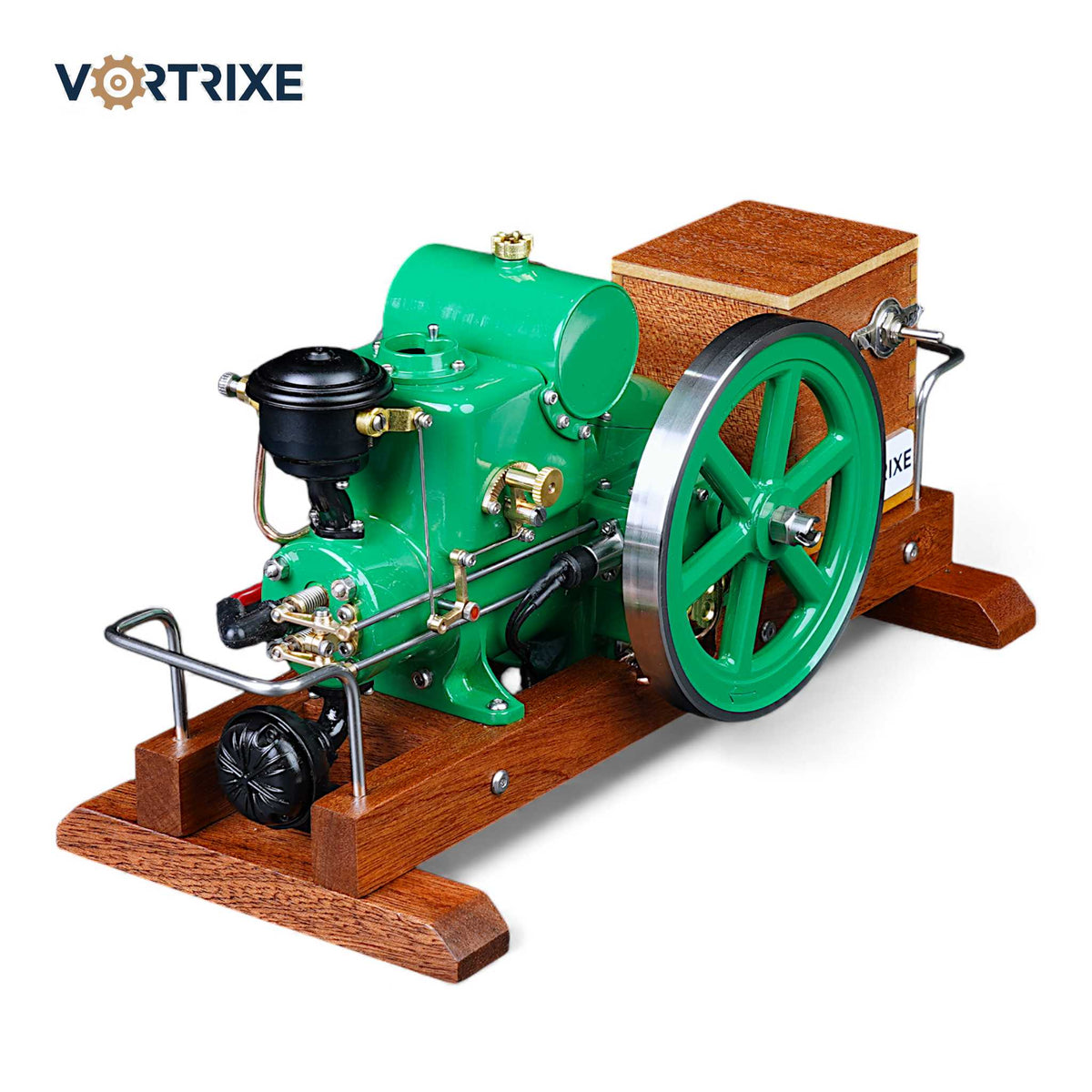

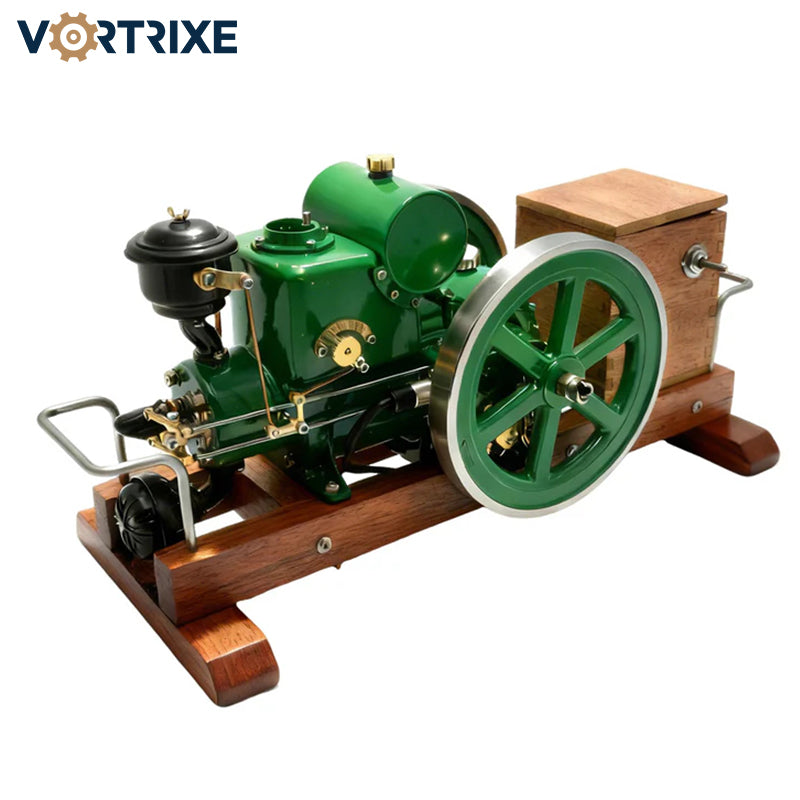

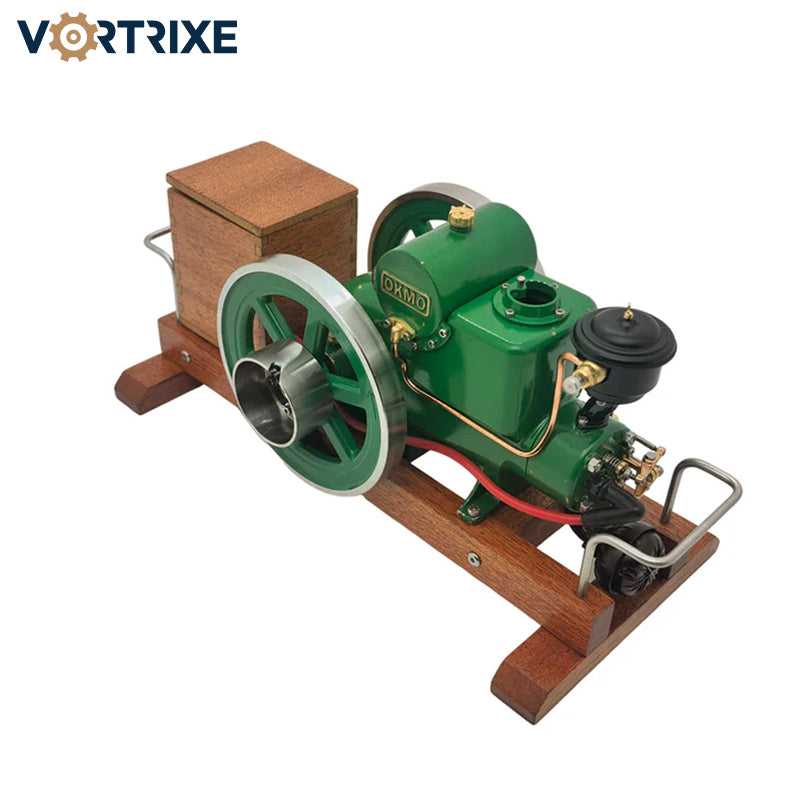

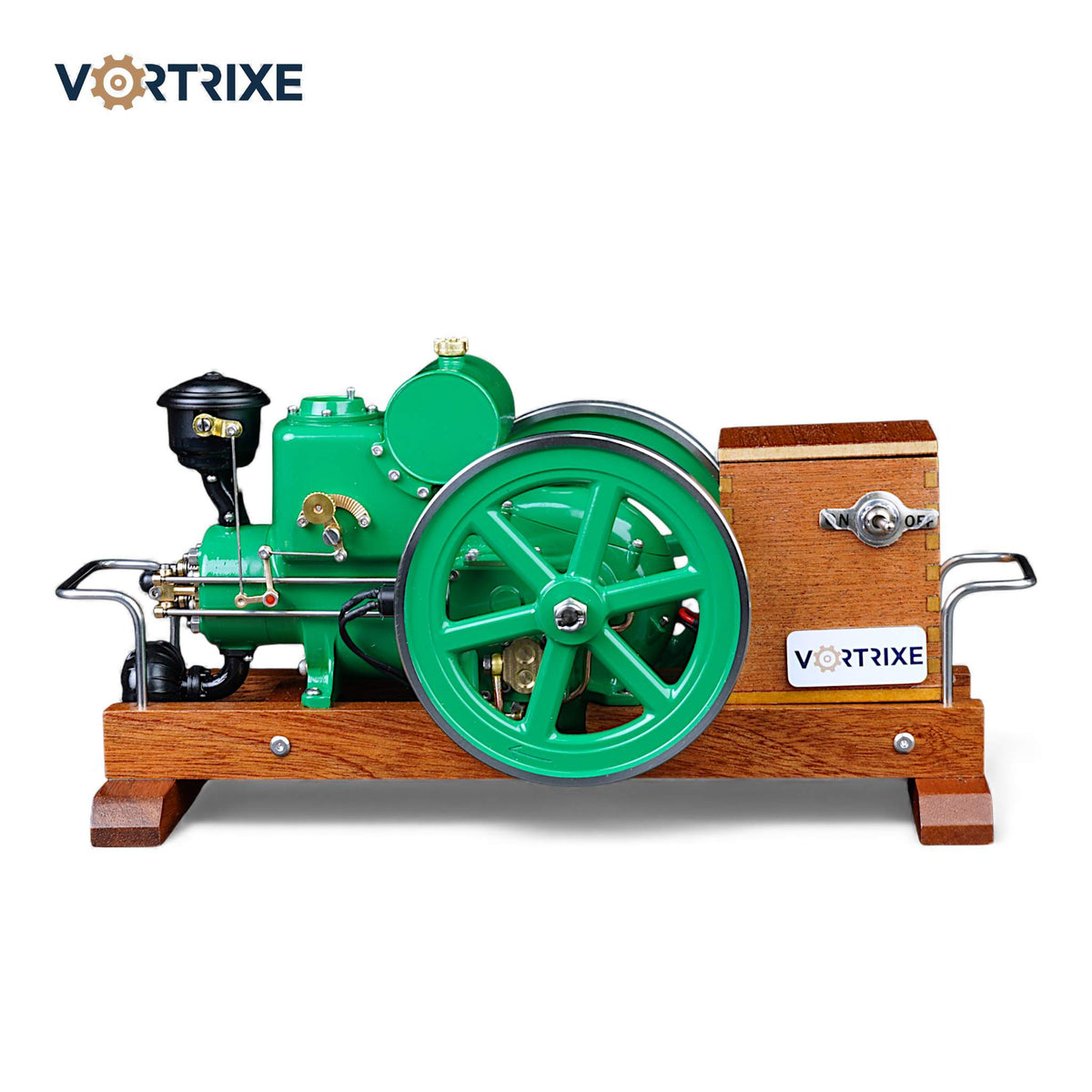

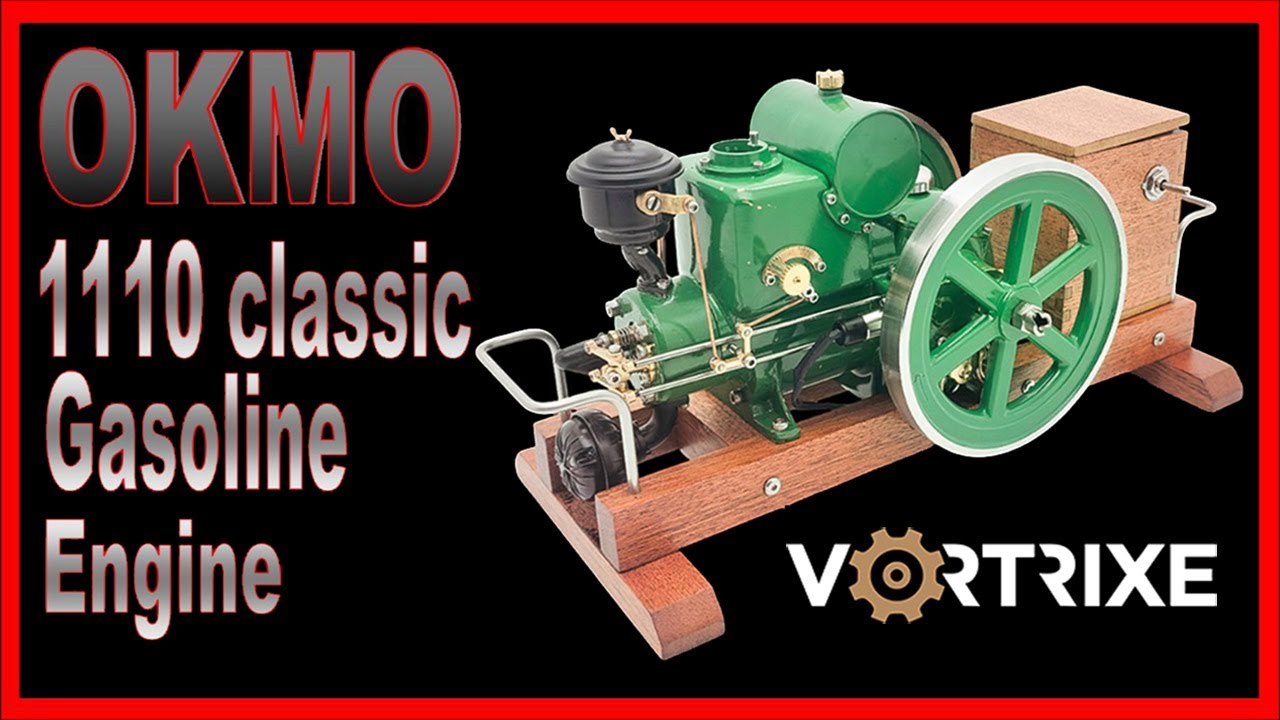

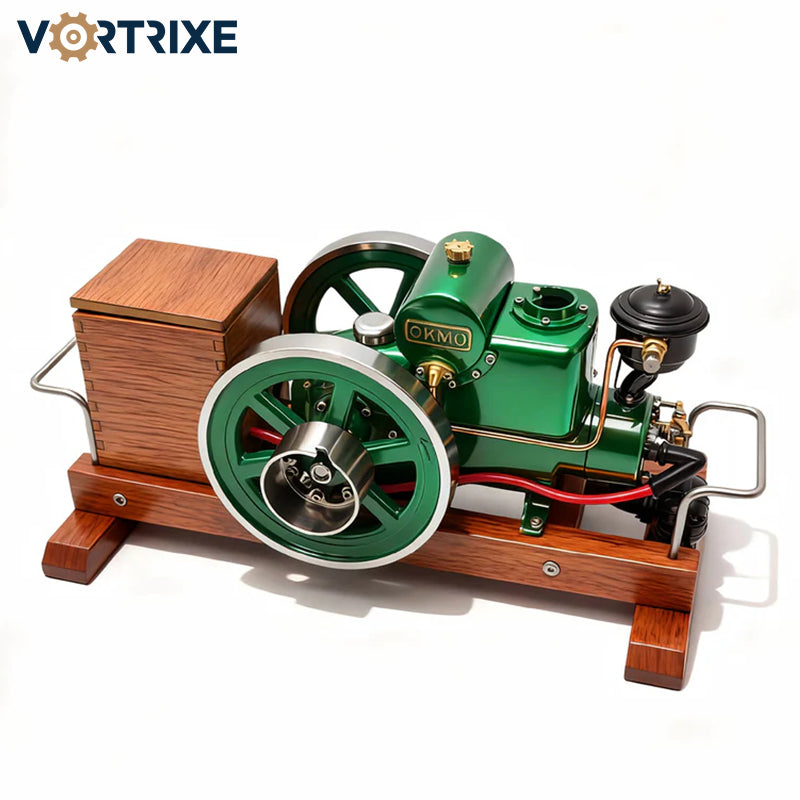

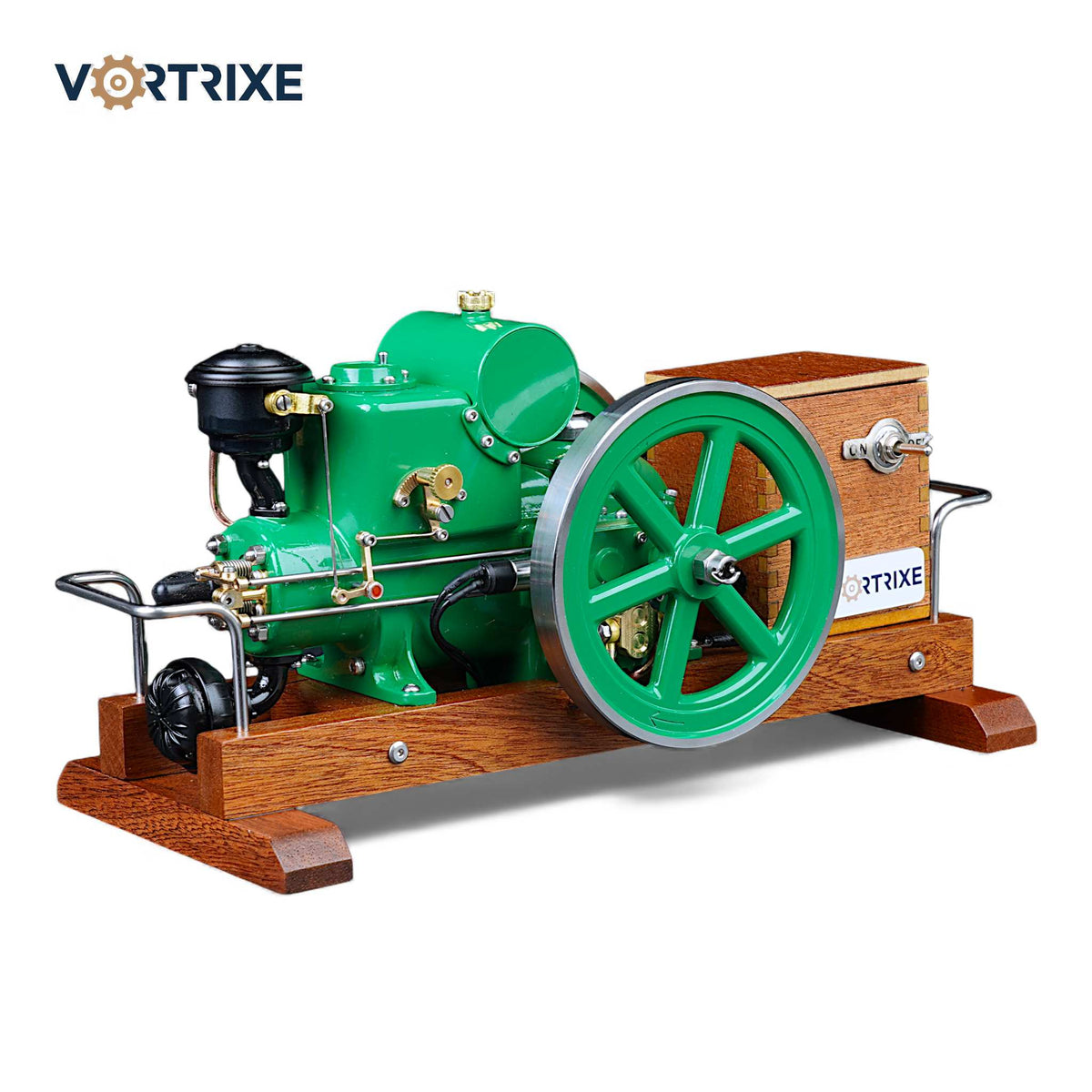

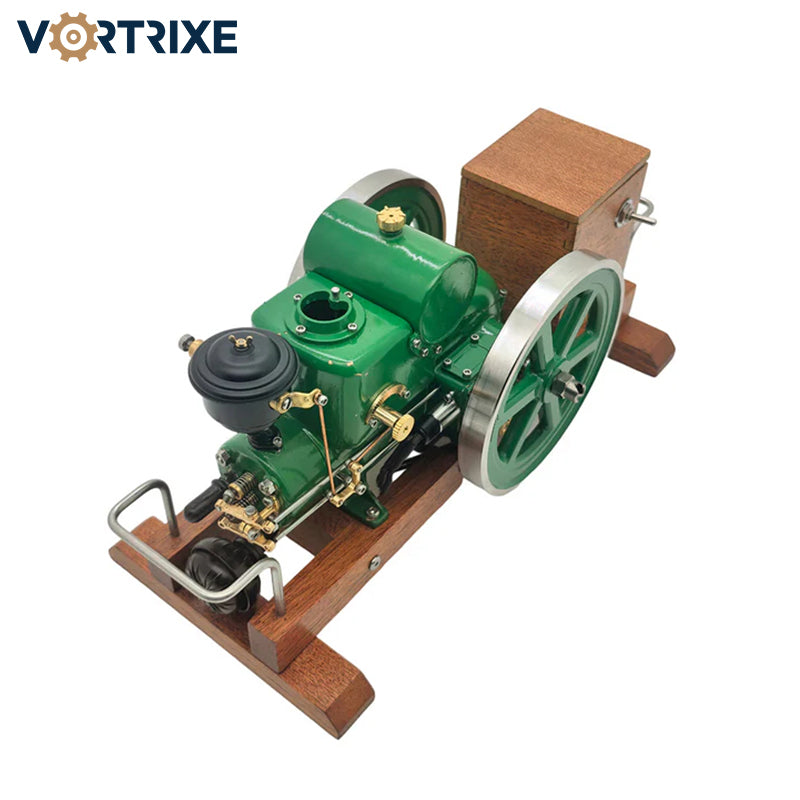

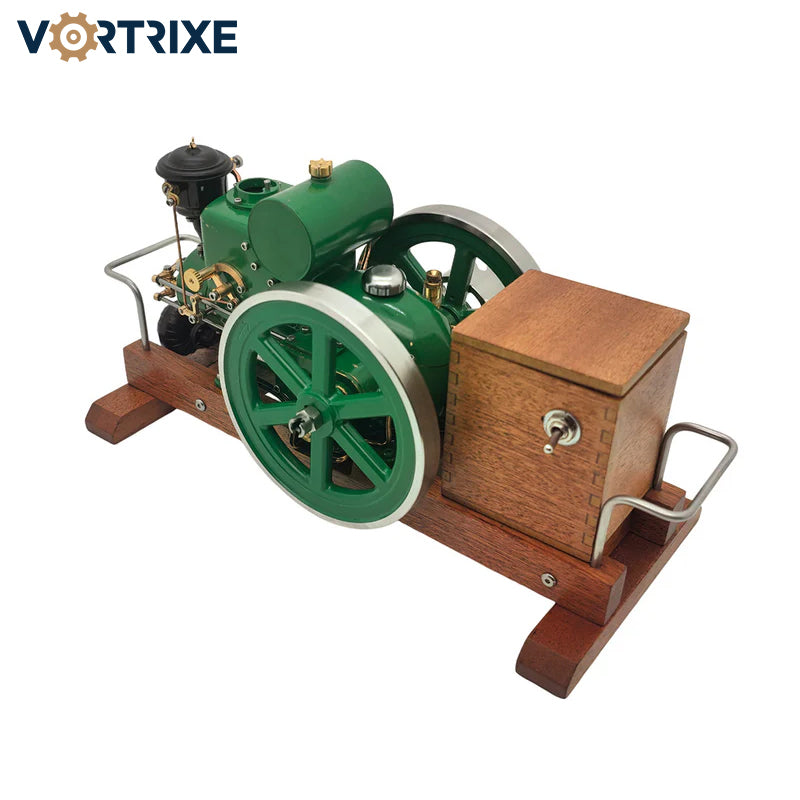

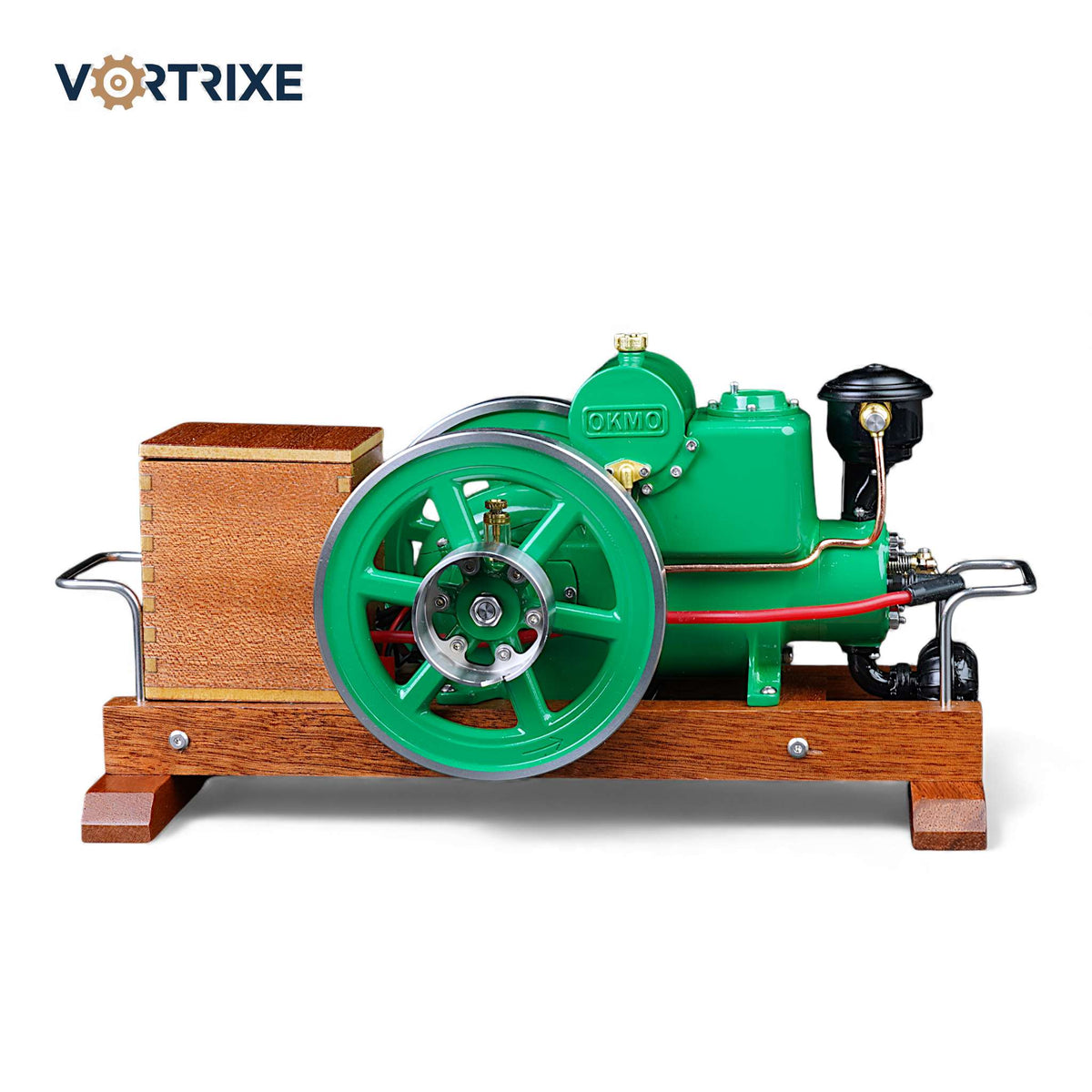

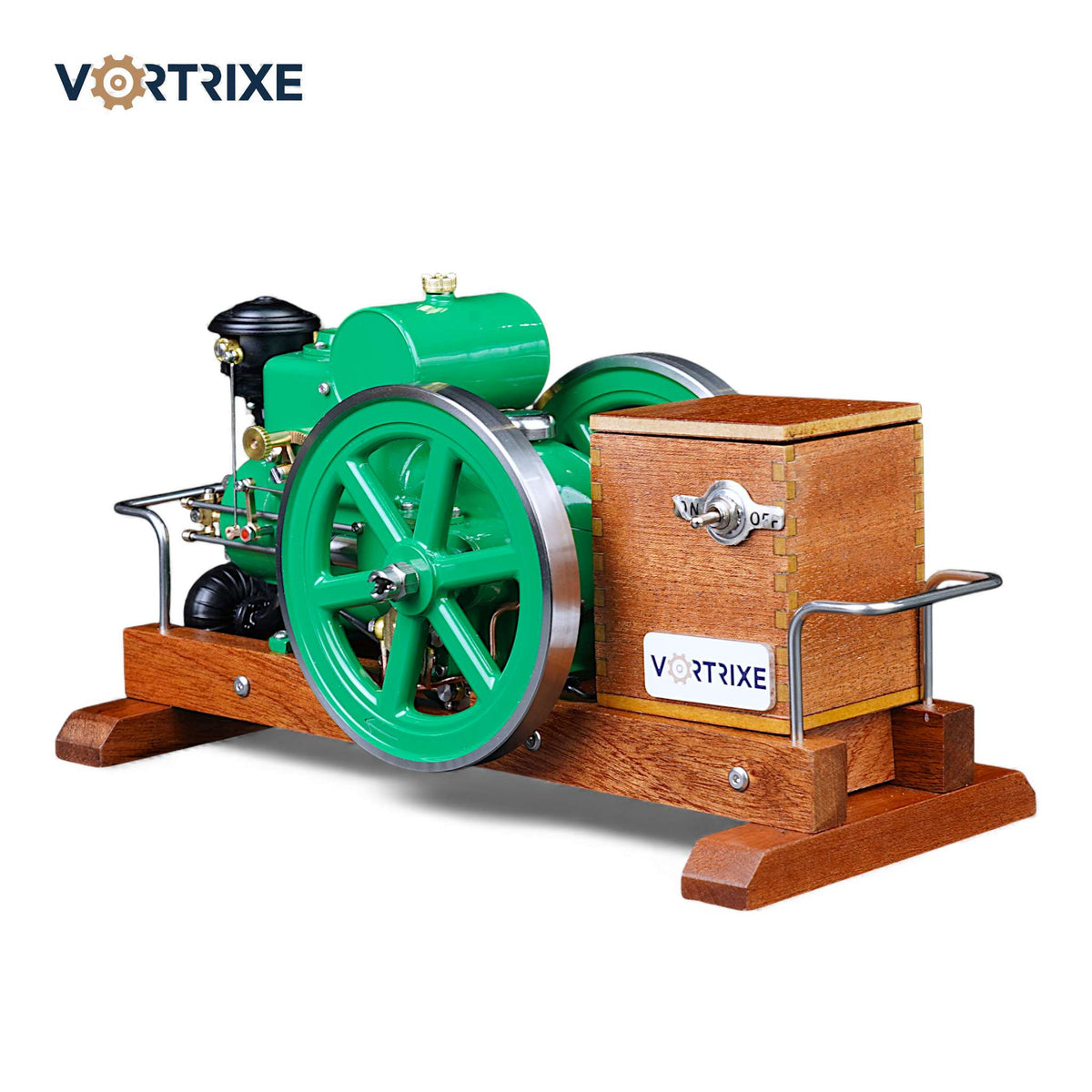

The 1110 engine is a multi-functional power device. It is equipped with a 19mm stroke and 16mm bore engine and can also be used as a power source for pumps, grinding, mechanical power generation, and other purposes. The cylinder adopts numerical control processing technology, ensuring high-precision matching between parts. This not only enhances overall operational stability but also prolongs the service life of the engine.

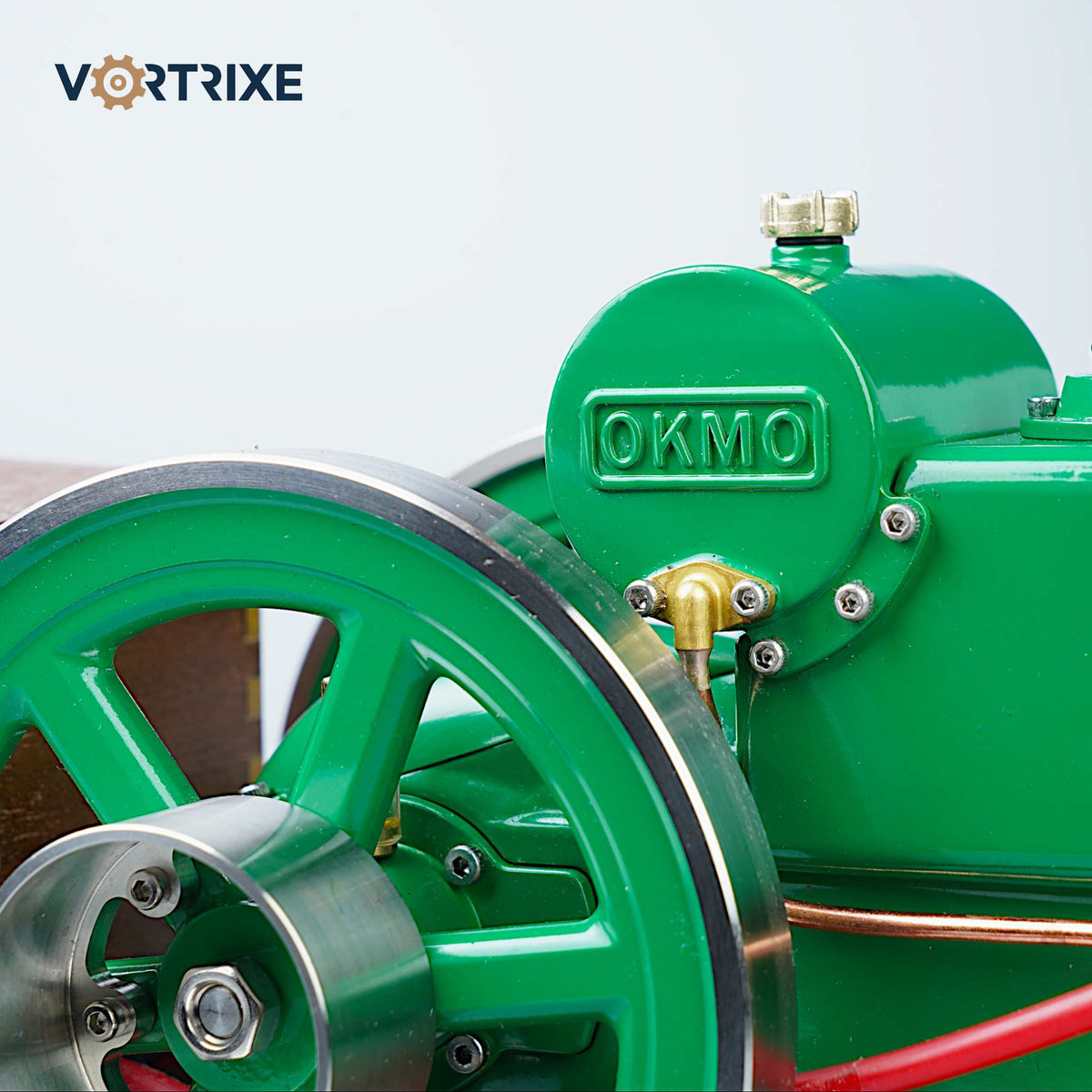

- Excellent cooling effect: The engine is equipped with a large-capacity water tank to ensure good cooling performance during long-term operation, avoiding performance degradation or failure due to overheating.
- Perfect lubrication system: The engine adopts a metal ring design, and the engine oil fully lubricates the piston and camshaft through the connecting rod oil passage. The piston is equipped with two gas rings and one oil ring, effectively preventing oil and gas leakage and enhancing the sealing performance and overall performance of the engine.

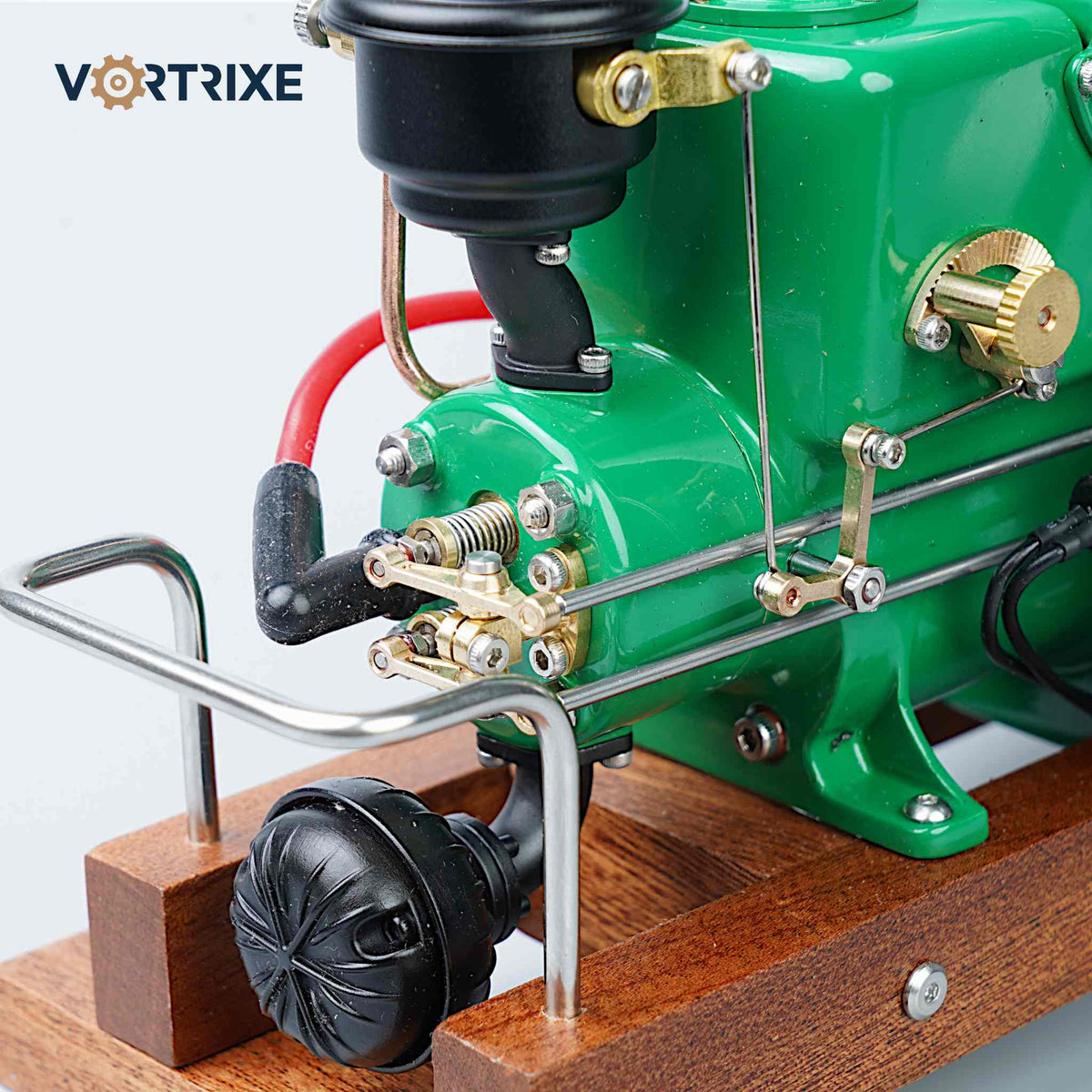

- Advanced ignition system: Adopting a brand-new mechanical ignition method, it ensures accurate and reliable ignition. At the same time, a filter is installed at the oil inlet to effectively prevent impurities from entering the oil circuit system and protect the internal parts of the engine from wear.
| Model | 1110 |
| Material | Brass + Stainless Steel |
| Color | Green |
| Form | Ready to Run |
| Displacement | 3.6CC |
| Cylinder Diameter | 16mm |
| Stroke | 19mm |
| Cooling Method | Water Cooling |
| Lubrication Method | Independent Oil Channel Lubrication |
| Ignition Method | Mechanical Ignition |
| Spark Plug Specification | 3/16-40 British Thread |
| Power Supply | 1.5V / AA Battery ×1 (Not Included) |
| Starting Method | Hand Pull / Electric Drill |
| Fuel | 95# and Above Gasoline |
| Engine Oil | Engine Oil |
| Product Dimensions | 26 × 12 × 12.8cm |
| Product Weight | 1810g |
| Package Weight | 2000g |
| Packing | Graphic Carton |
| Ages | 16+ |

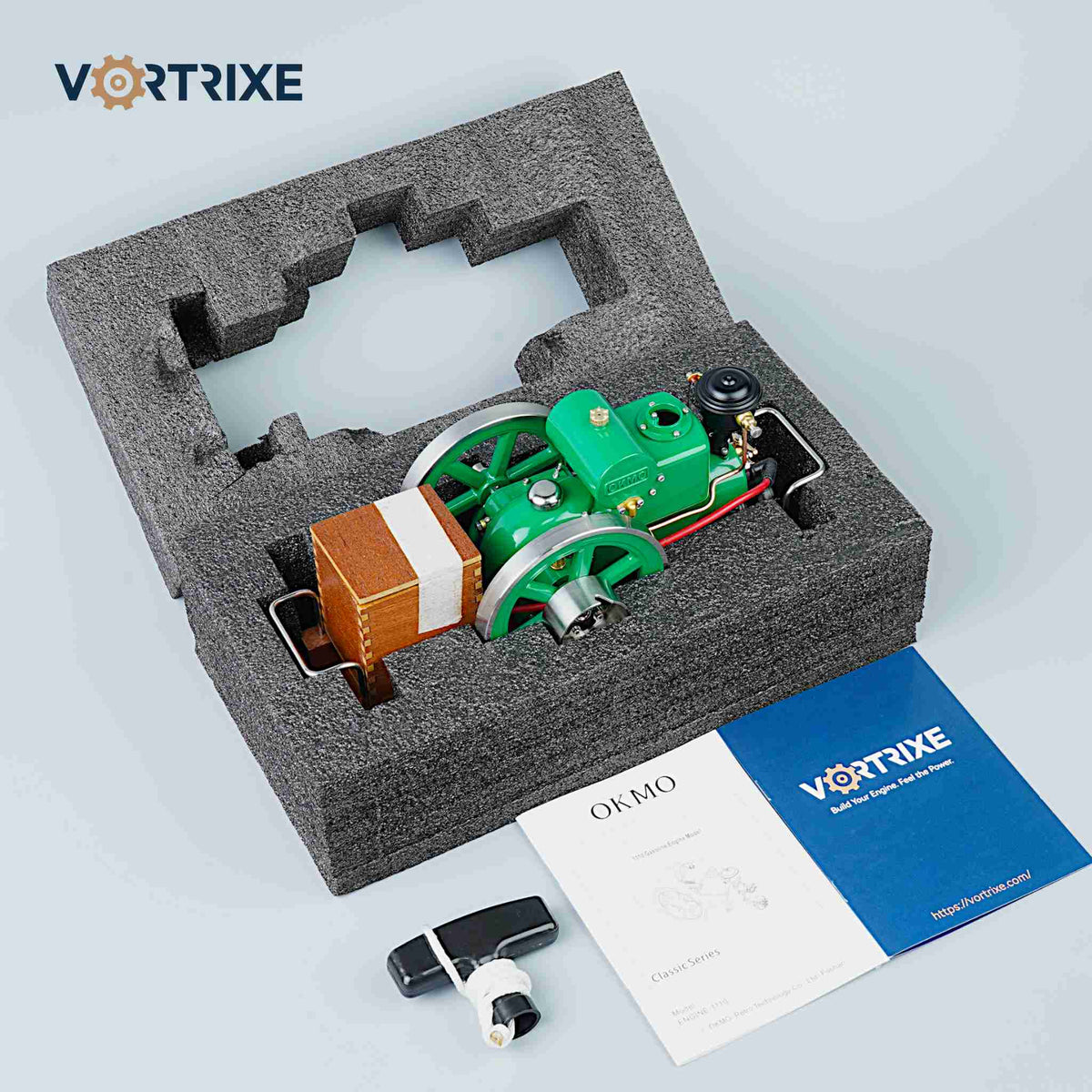

| Package Content | Engine ×1; Starter Stick ×1; Instruction Manual ×1 |

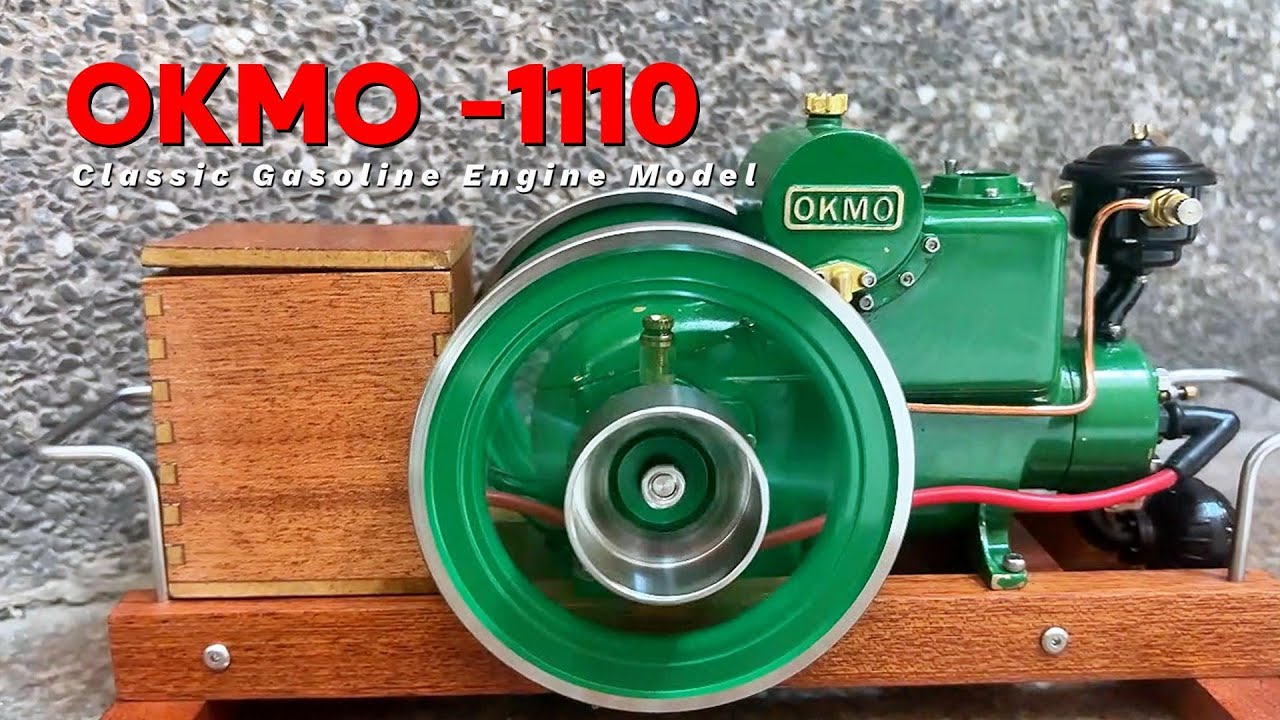

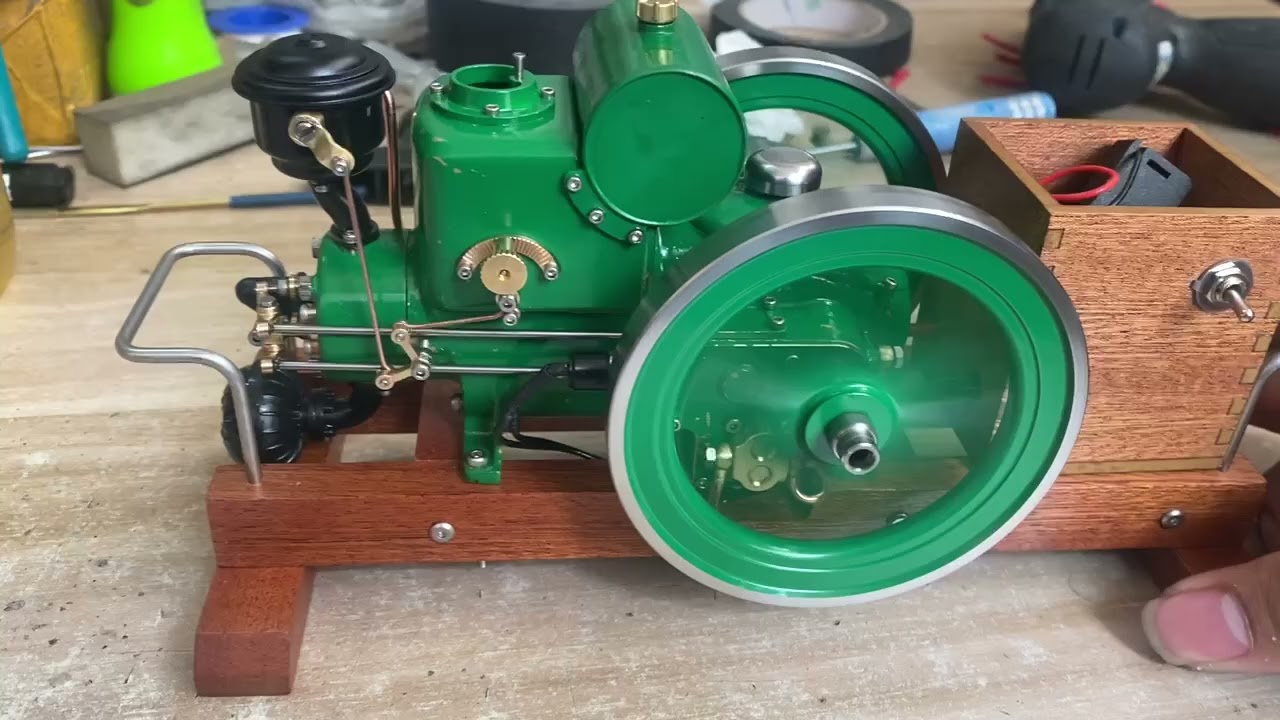

Pure Startup
No music. No commentary. Just the authentic sound of the engine.
Operation Guide
Learn how to start, operate, and maintain your engine model with this step-by-step video tutorial.
For a century, Yanmar has been renowned worldwide for its compact and durable diesel engines and machinery since its founding in 1912. Among its innovations, Yanmar introduced the world's first commercially viable small diesel engine—a milestone that not only marked the birth of compact diesel power but also brought tremendous convenience to workers of the era, transforming countless lives.

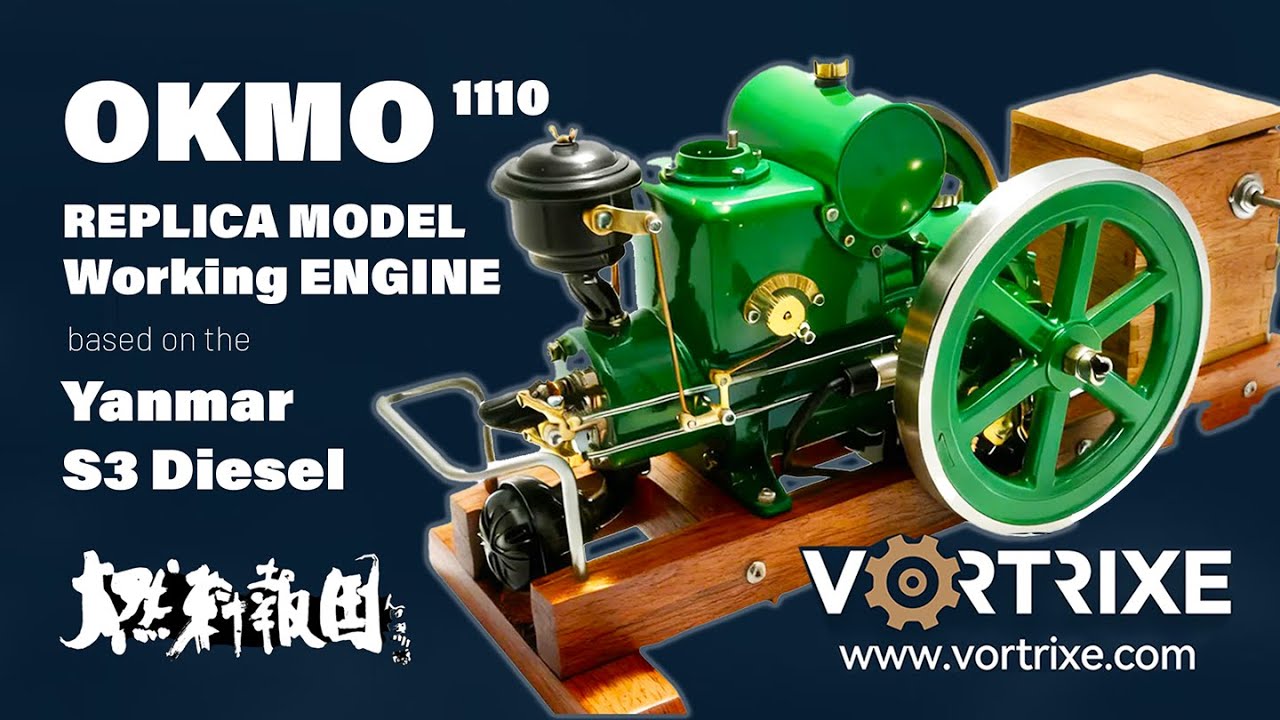

The OKMO 1110 Engine model is primarily based on Yanmar's S model engine produced between 1932 and 1945. The 1110 Engine model not only preserves the compact proportions of the original S Model Engine but also replicates its key components and operational details. This allows mechanical enthusiasts and collectors to relive the design ingenuity and mechanical beauty of the S Model Engine through the 1110 model engine, while experiencing the innovative power and labor spirit Yanmar has brought to the world.
World's First Small Diesel Engine: An Industrial Memory That Endures
In 1933, Yanmar successfully developed the HB—the world's first viable small diesel engine. This compact, horizontally mounted water-cooled diesel engine delivered 5 to 6 horsepower. Its design made diesel power practical and portable, accelerating mechanization in agriculture, fisheries, and light industry.
Yanmar's founder, Magokichi Yamaoka, recognized Japan's resource constraints and dedicated himself to creating a durable, fuel-efficient engine—achieving success with the HB. The HB series engines were simple to operate and significantly reduced the size and weight of diesel engines, enabling easy movement by a single person. This design allowed the HB engines to be widely adopted in agriculture, powering rice hullers, irrigation pumps, and other machinery.
Why Choose the S Model? The Design Answer for the 1110
The S model engine is an extension of the compact diesel engine family developed following the success of the HB model. It represents a technical evolution and refinement of the HB model engine, while also being suitable for mass production and expanding its application scenarios.
Replicating a miniature, functional model demands high precision in parts. The S model engine, validated through mass production, features a more mature mechanical structure that serves as a valuable reference for the 1110 engine's replica design.
The S Model's compact structure, standardized components, and reliable starting system ensure the replicated 1110 miniature model can start authentically and operate stably.
More Than a Replica: The Allure of the 1110
The 1110 engine model is not merely a replica of Yanmar's classic design; it incorporates innovative engineering and meticulous craftsmanship, allowing every mechanical enthusiast to experience the beauty of machinery firsthand.
Featuring precision CNC-machined cylinders and pistons, a comprehensive lubrication system, and a large-capacity water tank, the 1110 model ensures stable operation during use, making every rotation more mechanically captivating.
Additionally, the 1110 engine model incorporates removable and operable components, allowing enthusiasts to perform modifications and DIY projects for a more immersive experience.
Educationally, the 1110 serves not only enthusiasts but also beginners learning engine principles and power mechanisms. Through observation and hands-on operation, it facilitates deeper understanding of mechanical structures and engine functionality.
With its exquisite craftsmanship and robust replica design, the 1110 radiates mechanical aesthetics and timeless charm—whether displayed, collected, or gifted.
