VORTRIXE & OKMO M16 Mini Air-cooled 4 Stroke Single-cylinder Gasoline Engine Model
- Regular Price
- $269.99
- Sale Price
- $269.99
- Regular Price
Sold Out
- Unit Price
- per
Was $299.99. Save $30!
Model Showcase Reviews

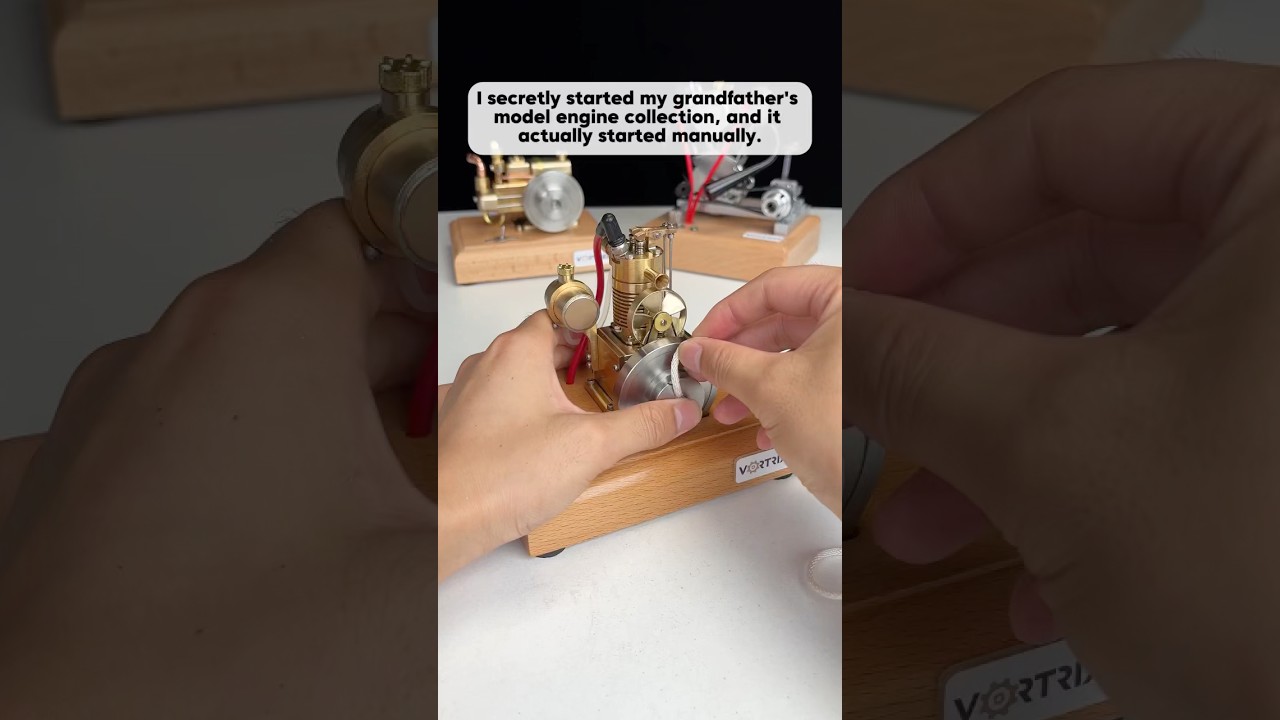

Manually start the old hit&miss engine!
Vortrixe
×
VORTRIXE & OKMO M16 Mini Air-cooled 4 Stroke Single-cylinder Gasoline Engine Model
Features:
- It is a mini engine with an air-cooled structure and a carburetor with adjustable speed.
- Made of brass and stainless steel, unique and exquisite.
- The structure is stable and reliable. Comes with a wooden base for convenient operation. You will love this retro and refined mini gasoline engine model!
Engine Start Steps:
1. Check engine wiring from the wooden base, then connect tank tubing, and install 3 AA batteries (4.5V).
2. Fill the tank with 95# gasoline. After filling, rotate the flywheel clockwise several times on the right side of the engine (power switch surface) to allow the fuel mixture to enter the cylinder completely, ensuring no air is in the fuel line.
3. Turn on the power switch and then quickly rotate the flywheel clockwise on the right side of the engine (power switch surface) to start the engine.
Notes:
1. If the ignition is working and the cylinder compression is normal but the engine does not start properly, the carburetor needle may need adjustment.
2. After tightening the main fuel pin on the carburetor, loosen 1/4 turn and start the flywheel to achieve the normal gasoline-to-air mixture ratio.
3. When the engine stops running, turn off the power switch.
Excellent Gift:
- This exquisite engine model is simple to operate. You can observe and understand the working process and principle of the engine. It can also be a great personalized gift for fans of mechanical craft models. For any questions, please feel free to contact us.
For Age: 16+
Features:
- It is a mini engine with an air-cooled structure and a carburetor with adjustable speed.
- Made of brass and stainless steel, unique and exquisite.
- The structure is stable and reliable. Comes with a wooden base for convenient operation. You will love this retro and refined mini gasoline engine model!
Engine Start Steps:
1. Check engine wiring from the wooden base, then connect tank tubing, and install 3 AA batteries (4.5V).
2. Fill the tank with 95# gasoline. After filling, rotate the flywheel clockwise several times on the right side of the engine (power switch surface) to allow the fuel mixture to enter the cylinder completely, ensuring no air is in the fuel line.
3. Turn on the power switch and then quickly rotate the flywheel clockwise on the right side of the engine (power switch surface) to start the engine.
Notes:
1. If the ignition is working and the cylinder compression is normal but the engine does not start properly, the carburetor needle may need adjustment.
2. After tightening the main fuel pin on the carburetor, loosen 1/4 turn and start the flywheel to achieve the normal gasoline-to-air mixture ratio.
3. When the engine stops running, turn off the power switch.
Excellent Gift:
- This exquisite engine model is simple to operate. You can observe and understand the working process and principle of the engine. It can also be a great personalized gift for fans of mechanical craft models. For any questions, please feel free to contact us.
For Age: 16+
| Material | Brass + Stainless Steel + Wood |
| Color | As Shown |
| Displacement | 1.6CC |
| Cylinder Diameter | 13mm |
| Flywheel Diameter | 56mm |
| Fuel Tank Capacity | 8ML |
| Ignition Power Supply | 4.5V (3 AA Batteries Not Included) |
| Starting Method | External Force (Electric Drill) or Hand Pull Start |
| Fuel | Gasoline or Aviation Kerosene |
| Product Dimensions | 150 × 120 × 130mm |
| Base Dimensions | 150 × 120 × 30mm |
| Engine Dimensions | 8 × 7 × 10cm |
| Product Weight | 980g |
| Package Dimensions | 20 × 20 × 15cm |
| Package Weight | 1500g |
| Package Content | Engine Model ×1; User Guide ×1 |
